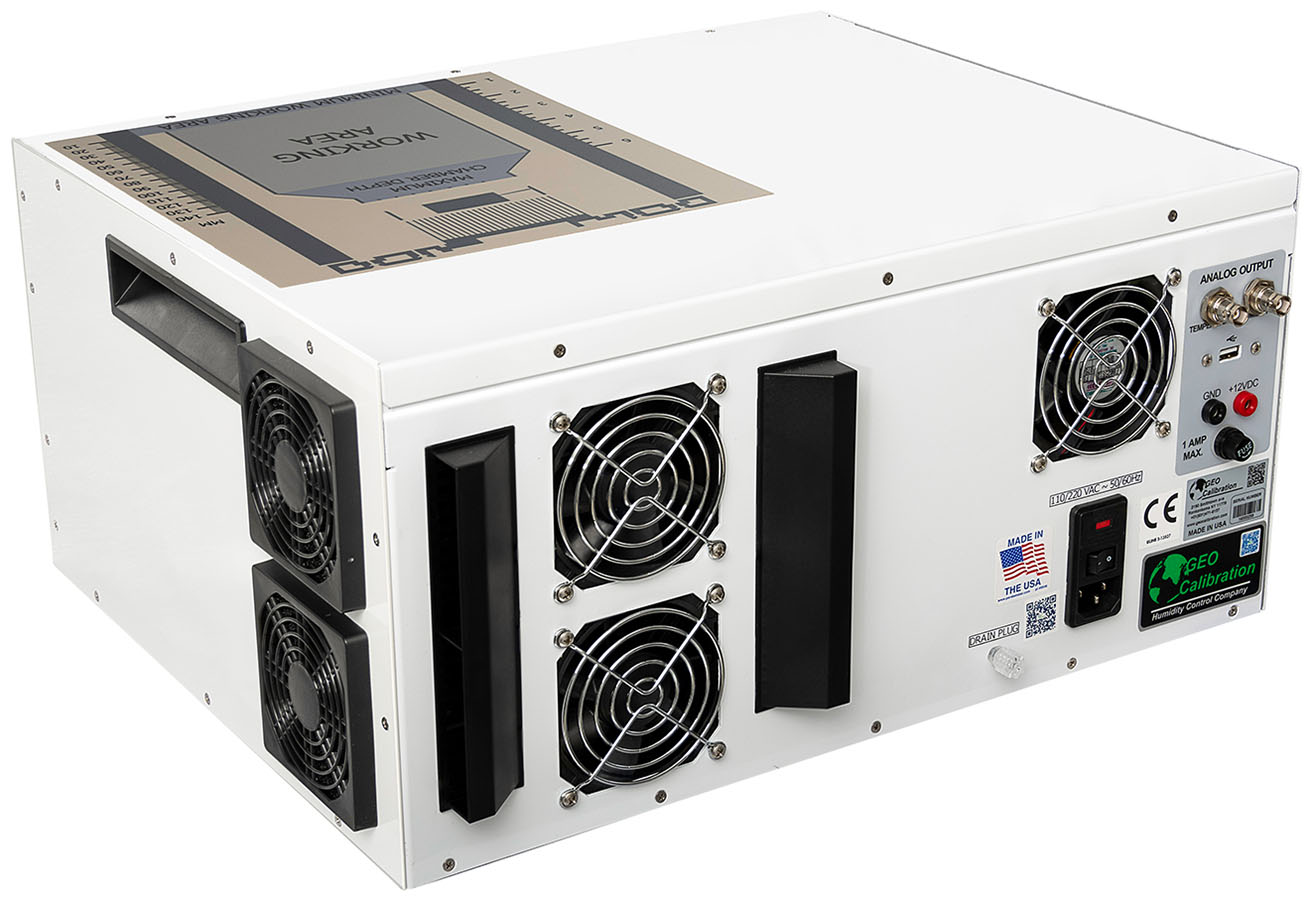

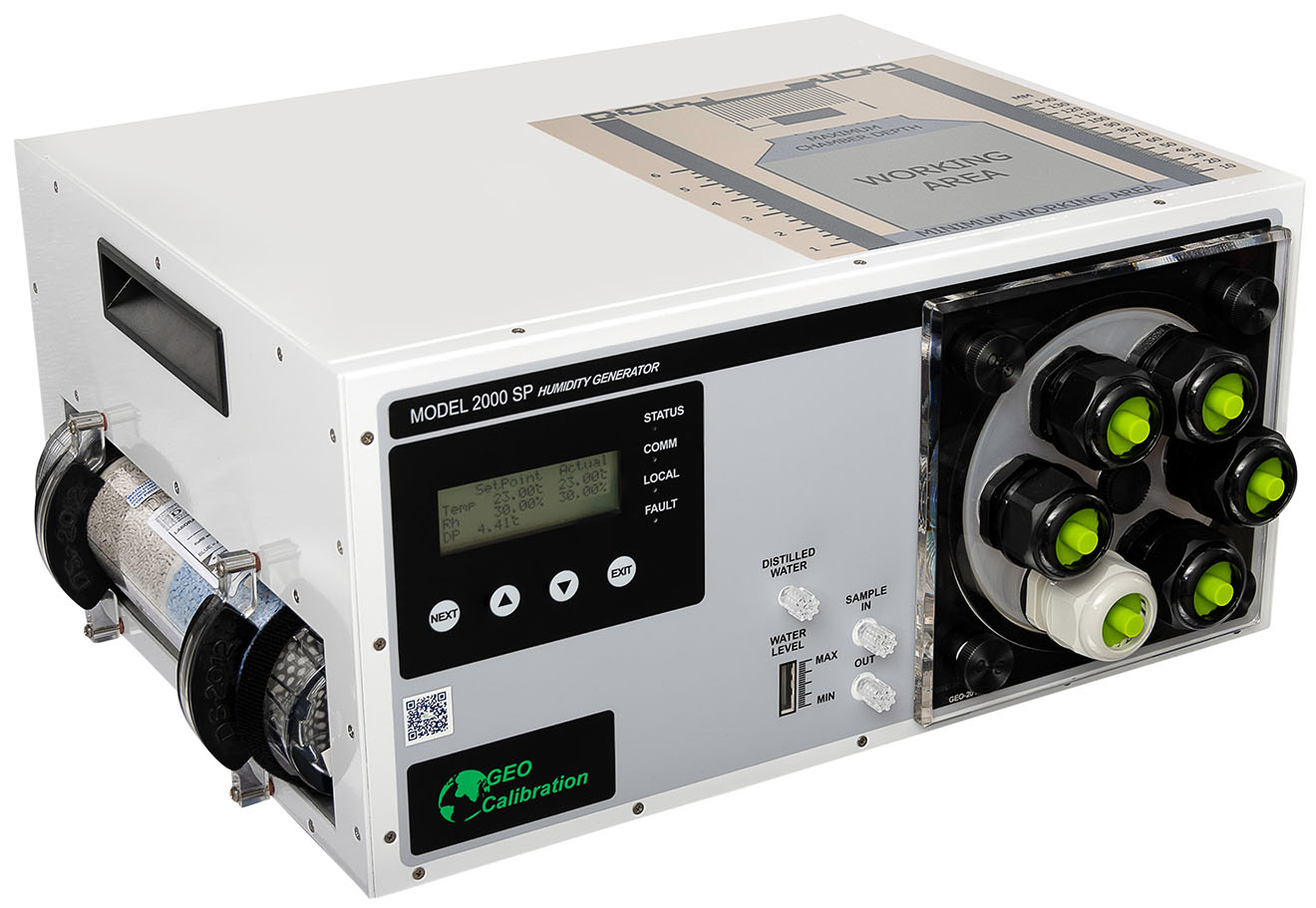

GEO Calibration 2000 SP Single Pressure Humidity Generator

The GEO Calibration 2000 SP single pressure humidity generator is a low cost, high accuracy alternative to relative humidity calibrations that use chilled mirror or 2-pressure systems. The system is also faster than procedures using saturated salts.

The 2000 SP incorporates advanced electronics and innovative approaches resulting in an overall improvement in performance and reliability. It features 3-10 minute response times, custom chamber expansions, remote login capabilities, and advanced point stabilization protocols.

The 2000 SP is portable and durable for regular transportation.

Features

• 5 to 55°C temperature range
• 5 to 95% RH humidity range at 23°C
• ±0.1°C temperature accuracy
• ±1.0% relative humidity accuracy at 23°C
• PID controller
• 0.10°C temperature uniformity
• 0.30% RH uniformity
• 0.05°C temperature stability
• 0.15% RH stability @ 18 to 28°C
• Ramp/soak rate of change:
  • Temperature high to low, 1.50°C per minute
  • Temperature low to high, 5.00°C per minute
  • Humidity high to low, 5.00% RH per minute
  • Humidity low to high, 10.00% RH per minute
