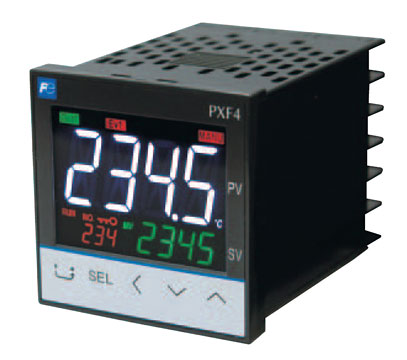

Fuji Electric PXF4 Temperature Controller

The Fuji Electric PXF4 temperature controller was developed as a successor to the PXR4. It is equipped with multiple input and output options as well as sophisticated control functions making it suitable for a wide range of applications. You can use any input among RTD, thermocouples, voltage, current, and mV. Switching the input is an easy parameter change.

The PXF series features highly accurate input indication:

RTD is ±0.2% of indication value ±1 digit or ±0.8°C ± 1 digit, whichever is larger
Thermocouple is the larger of ±1°C ±1 digit or ±0.3% of indicated value ±1 digit
Voltage and current are ±0.3% FS ± 1 digit

Features

• Universal input
  • Thermocouple, RTD, voltage, current, mV
• Improved input indication accuracy, up to ±0.2%
• 0.1 to 99 second control cycle
• On/Off control & PID controls with auto tuning
  • PID, 2-degrees-of-freedom PID, & fuzzy
  • Open-loop supported PID2 control
• Ramp soak function (simple program control)
  • 64 steps x 1 pattern
  • 32 steps x 2 patterns
  • 16 steps x 4 patterns
  • 8 steps x 8 patterns
• Directly connect to a PC with optional USB cable
  • This will bus-power the unit
