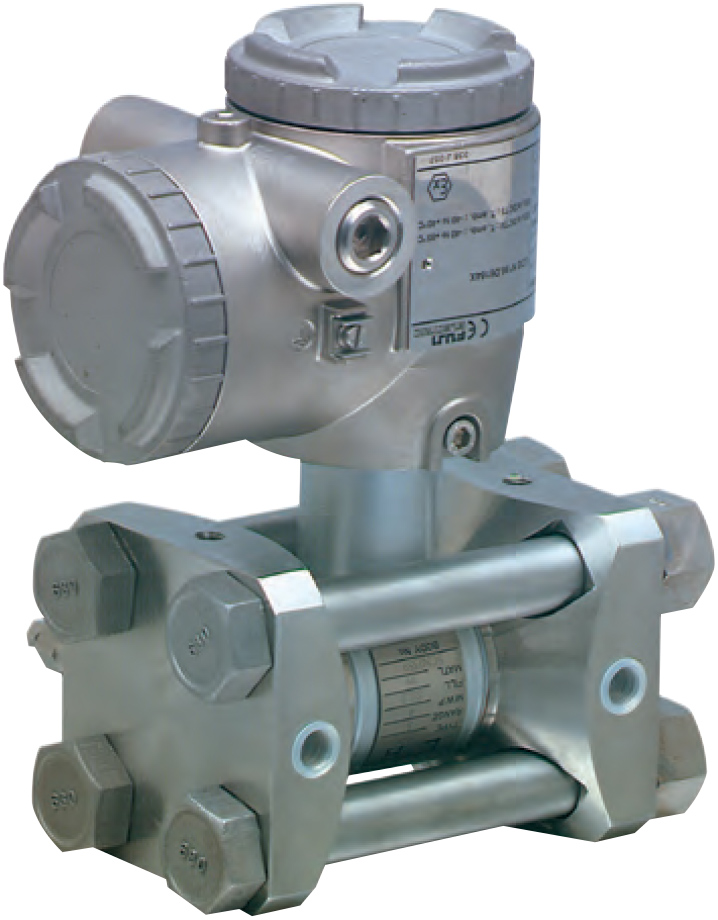

The Fuji Electric FKC High Static Differential Pressure Transmitter are designed for high pressure applications that are traditionally found in oil & gas flow measurement. The transmitter enables it to measure differential pressures of 130 mbar at static pressures of up to 15,000 Psi (1035 bar), typically found in top-side and subsea applications.
The transmitter utilizes a unique micromachined capacitive silicon sensor with state of the art microprocessor technology to provide exceptional performance and functionality. The silicon sensor is assembled floating in measuring cell neck, which allows extreme high line pressures and improves the static pressure characteristics.
The design is based on an all welded construction, where the welded assembling of the process covers on the measuring cell replaces the gaskets. Adapted SS 660 bolting and the specific process covers – NACE compatible – ensure that the required mechanical strength to the assembly is certified according to a PED category IV module H1.
