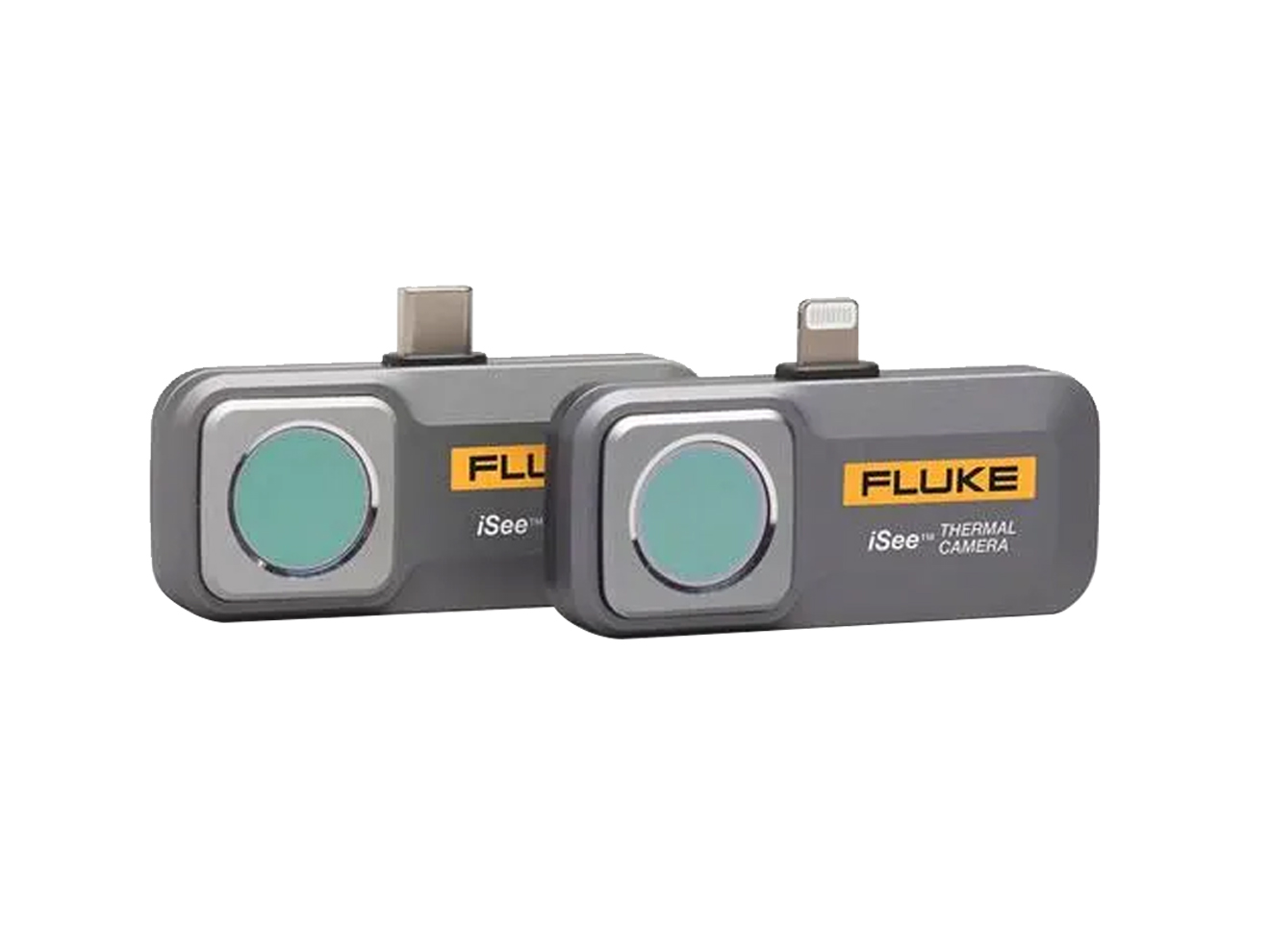

Fluke iSee Mobile Thermal Camera

The Fluke iSee Mobile Thermal Camera is inserted into the Type-C interface of an iOS smartphone to provide thermal imaging detection. The iSee is available with more than 10 standard and custom color palettes to achieve a variety of personalized images. The software offers comprehensive spot, line, and area temperature analysis for precise diagnostics.

Applications:
Electrical and mechanical inspections
Inspection service
HVAC inspection
Product R&D and quality control

Features

• 14 to 1,022°F (-10 to 550°C) temperature range
• ±2% or ±3.6°F (2°C) accuracy
• 50mk (0.05°C) thermal sensitivity for fine screening
• Type-C USB interface for iOS
• 25Hz frame rate
• 3.2mm focal length
• Internal shutter mode
• 8 to 14μm spectral range
• 56° x 42° field of view
• 3.81 mrad spatial resolution
• 1 minute warmup time
