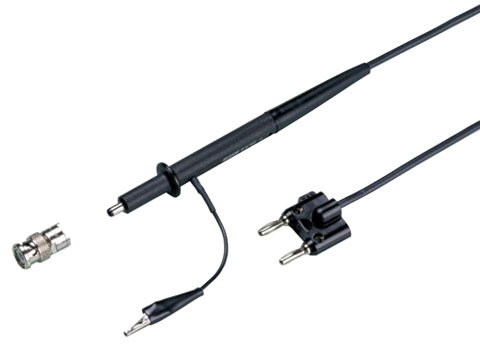

Fluke 85RF II High Frequency Probe

The Fluke 85RF II high frequency probe calibrates the DC output to be equal to the rms value of a sine wave input. It can be used with a DC voltmeter that has an input resistance of 10MΩ, ±10%. Voltmeters with higher input resistances are usable if an external shunt is put across the input terminals to decrease the input resistance to 10MΩ.

Features

• 0.25 to 30V RMS voltage range
• 1:1 AC to DC ratio
• ±0.5dB ratio accuracy (@25MHz & 10MΩ)
  • ±1.0dB below 0.5V
  • Add ±0.2dB in RF fields of 1 to 3V/m
• Approximately 9pF input capacitance
• 1-year warranty
