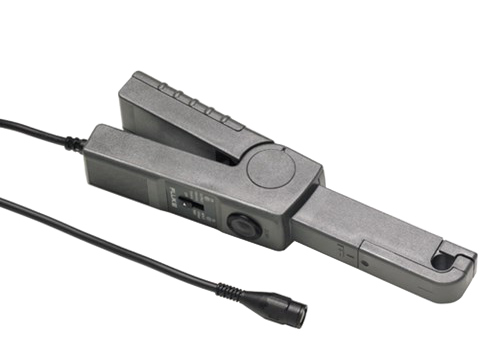

Fluke 80i-110s AC/DC Current Clamp

The Fluke 80i-110s is compatible with any Fluke ScopeMeter test tool, power harmonics analyzer, oscilloscope, multimeter, or other voltage measurement device that has the following features: BNC input connectors or if using a meter convert the banana plugs to a BNC connector using the adapter PM9081/001.

Features

• 10 or 100A AC/DC nominal current range
• Continuous current range
  • 0.1 to 10A AC/DC (100mV/A output)
  • 1 to 100A AC/DC (10mV/A output)
• ±3% of reading +50mA (100mV/A, 50mA to 10A)
  • ±4% of reading +50mA (10mV/A, 50mA to 40A)
  • ±12% of reading +50mA (40 to 80A)
  • ±15% of reading (80 to 100A)
• Maximum non-destructive current of 140A (2kHz)
• Lowest measurable current of 0.1A
• 100kHz useable frequency
• CAT II 600V & CAT III 300V
• 1-year warranty
