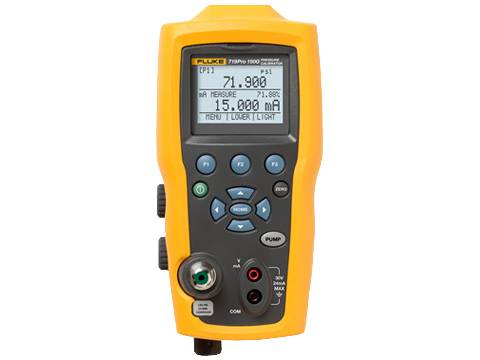

Fluke 719Pro Electric Pressure Calibrator

The Fluke 719Pro Electric Pressure Calibrator is the ideal test tool for calibrating high accuracy transmitters, pressure switches and pressure gauges. The 719Pro includes a full functioning loop calibrator that sources, simulates and measures mA signals and more. The large backlit screen displays three parameters at once:

Pressure measurement from internal or external sensor
Sourced/simulated or measured mA values
Temperature measured by optional RTD probe

The 719Pro has a unique integrated electric pump for one handed pressure calibration. This unit allows you to test pressure switches easily with easy-to-use switch test function. Extended pressure measurement range can be attained with use of any 700Pxx pressure modules. Pump cleanout ports reduce pump failures from moisture and fluid damage. Fluid trap included with the unit to mitigate chance of fluid damage in at-risk applications.

Features

• Ranges:
  • -12 to 30 psi (-0.8 to 2 bar)
  • -12 to 150 psi (-0.8 to 10 bar)
  • -12 to 300 psi (-0.8 to 20 bar)
• Accuracy:
  • ± 0.025 % of full scale, 6 months
  • ± 0.035 % of full scale, 1 year
• One handed pressure calibration
• Pump clean out ports
• Fluid trap included
• Operating temp: 14 to 122°F (-10 to 50°C)
• Programmable pressure calibrator pump limit:
  • Eliminates over-pressurization
  • Allows user to program target pressures for pumping
