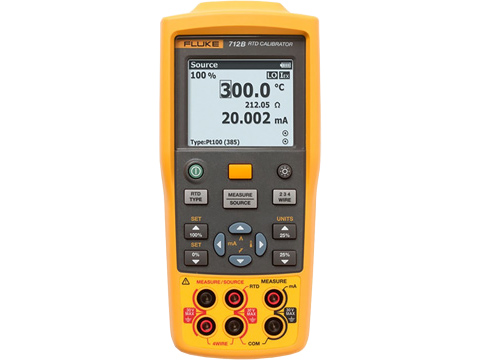

Fluke 712B RTD Temperature Calibrator

The Fluke 712B RTD Temperature Calibrator is designed for the temperature calibration professional that wants a highly accurate, easy-to-use and single function RTD temperature calibrator. The 712B can measure and simulate 13 different RTD types resistance. The unit also measures 4 to 20 mA signals while simultaneously sourcing a temperature signal.

The 712B features dual inputs and backlit display for easy interpretation of measurements. The power down setting remembered at power up for easy restart of tests. The maximum voltage applied between and terminal and earth or between any two terminals is 30V.

The 712B ships complete with:

Magnetic hanging tool
batteries
Manual
Traceable calibration certificate
Test leads

Features

• Measure and simulate (13) different RTD types and resistance
• Measure 4 to 20 mA signals while simultaneously sourcing a temperature signal
• Configurable 0 % and 100 % source settings
• Linear ramp and 25 % step auto ramp
• Dual inputs and backlit display
• Power down settings
• Max voltage applied between terminal and earth: 30V
• Operating temp: 14 to 122°F (-10 to 50°C)
