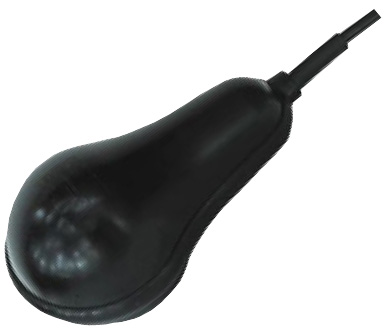

Flowline LV42 Switch Tek Sump Float Level Switch

The Flowline LV42 Switch Tek Sump Float Level Switch provides reliable liquid level detection and is designed for the automation of pumps, specifically filling and draining of tanks, wells and reservoirs. The LV42 body is free of any irregularities, making it ideal for use in sewage water applications. The polypropylene body consists of a double airtight chamber with high-pressure melted polypropylene re-injection sealing to ensure a perfect seal against infiltration.

Additional features / benefits of the Flowline LV42 Switch Tek Sump Float Level Switch include:

Mercury-free self counter-weighted float switch
Submersible polypropylene body and PVC cable for corrosive liquids
10 (3)A@ 250 VAC dry contact selectable NO or NC state via wiring selection
Compatible with counter weights and cable hangers for simple installation
Ideal for use in sewage water applications
Float can wire directly to PLC/ SCADA or controller
Counter-weighted float minimizes the effects of relay chatter
Double-airtight chamber helps protect from debris infiltration

Features

• Service: compatible liquids, slurries
• Mercury-free self counter-weighted float switch
• Process temp: -4 to 176°F (-20 to 80°C)
• Pressure: 29 psi (2 bar)
• Contact type: SPDT (NO/NC)
• Orientation: vertical
• Sensor rating: IP68
• Compatible with counter weights and cable hangers
• Ideal for use in sewage water applications
• Contact rating: 10 (3)A@ 250 VAC
• Sensor material: Polypropylene
• Cable jacket material: PVC
• Weight (housing): 2.4 lb (1.1 kg)
• Weight (cable): 0.77 lb (21.27g) per foot
