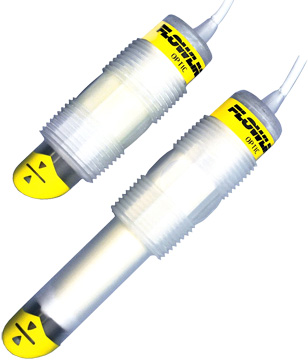

Flowline LO10 Switch Tek Optic Leak Detection Switch

The Flowline LO10 Switch Tek Optic Leak Detection Switch provides reliable leak detection in and around secondary containment sumps, tanks and piping systems with a 1A relay output. Media examples include sulfuric acid, water and diesel. The submersible polypropylene or PFA liquid leak detection sensor is mounted through the wall or within the interstitial space.

Additional benefits and features of the Flowline LO10 Switch Tek Optic Leak Detection Switch include:

Submersible polypropylene or PFATeflon® sensor and cable for corrosive liquids
60VA relay selectable NO or NC via power supply wiring polarity
Fail-safe leak sensor inverts wet to alert user for maintenance
Ideal for detecting leaks in secondary containment tanks and pipes
Switch fail-safe is “wet” preventing a switch from failing undetected
Useful in many corrosive liquids
Requires small amount of liquid to detect leak

Features

• Model LO10 Switch Tek Optic Leak Detection Switch
• Accuracy: ±1mm in water
• Contact type: (1) SPST relay
• Contact rating: 60 VA, 1A maximum
• Contact output: selectable NO / NC
• Process temp: -40°to 176°F (-40 to 80°C)
• Pressure:
  • 150 psi (10 bar) @ 25°C,
  • Derated @ 1.667 psi (0.113 bar) per °C above 25°C
• Sensor rating:
  • NEMA6 (IP68): PP
  • NEMA4X (IP65): PFA
• Sensor material:
  • 1XX5: Polypropylene
  • 2XX5: PFA
• Process mount: 3/4” NPT (3/4” G/Rp)
• Repeatibility: ±0.5mm in water
• Cable type: 4-conductor, shielded #22 AWG
• Cable jacket material:
  • 1XX5: Polypropylene
  • 2XX5: PFA
