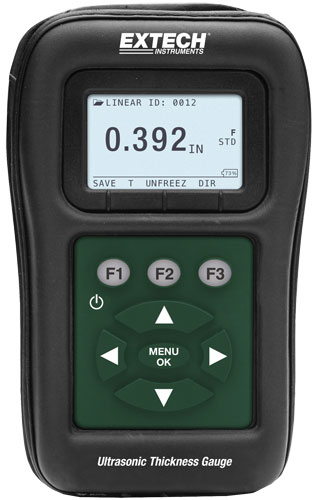

Extech TKG150 Ultrasonic Thickness Gauge

The Extech TKG150 Ultrasonic Thickness Gauge is designed in compact, handheld, rugged housing ideal for field use. The ultrasonic technology allows for non-destructive thickness measurements for primarily steel structures. The Echo to Echo function measures the metal thickness only. The differential mode displays the difference from the actual thickness measurement and a user entered reference value. The TKG150 also features velocity mode with displays acoustic sound speed.

Applications for the Extech TKG150 include:

Boiler tubes
Pressure vessels
Storage tanks
Ship Hulls
Containers
Home oil tanks
Pipes
Steam lines
Compressors
Shafts
Bridge pins
Bond inspection

Features

• Measurement ranges:
  • 5MHz probe: 0.040″ to 20″ of steel
  • 10MHz probe: 0.020” to 20″ of steel (optional)
• Sunlight readable dot-matrix display
• Records 100K readings
• Gain; variable adjustment
• Echo to echo
• B-scan; Displays a cross section of the test piece
• Multiple transducers
• On screen display of 8 languages
• Fast minimum feature to capture minimum thicknesses
• Splash-proof (IP54), high impact, compact housing
