Eurotherm Piccolo Series Process Controller

The Eurotherm Piccolo Series process controller offers precision PID control of temperature and other processes. It is designed to offer outstanding performance in an affordable package providing a complete solution for a wide variety of applications, providing easy access to parameterization and operation in a high quality unit.

The Piccolo Series includes a ramp soak timer for time based profiling of temperature sequences. These can be used to gradually vary the temperature in a control zone before maintaining it at a defined level, and is typically used to avoid the dangers of damage due to thermal shock.

The Piccolo Series also features the Eurotherm cutback system that ensures precise control to setpoint and inhibits temperature overshoot when correctly tuned.

Applications:
Precision PID controller
Plastics extrusion
Food and beverage
Furnaces and ovens
Incubators
Laboratory equipment

Features

• 32 to 131°F (0 to 55°C) operating temperature
• 1/16, 1/8, and 1/4 DIN mounting options available
• Ramp-soak timer and soft start
• Overshoot elimination
• Modbus RTU digital communications
• Digital setpoint retransmission
• Analog retransmission
• Power requirements:
  • 100 to 230 ±15%,
  • 48 to 62 Hz, max 6 W
  • 24 V AC, –15%, +10%
  • 24V DC, –15% +20% ±5% ripple voltage

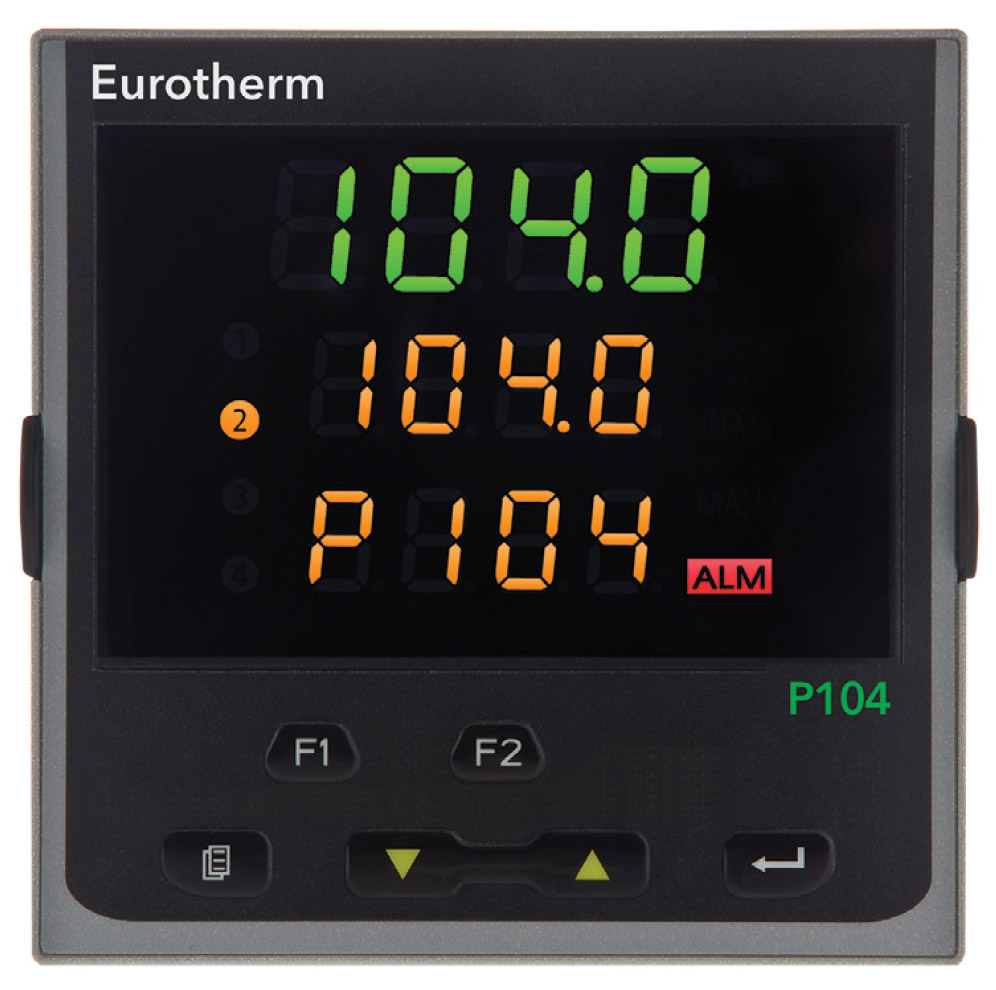

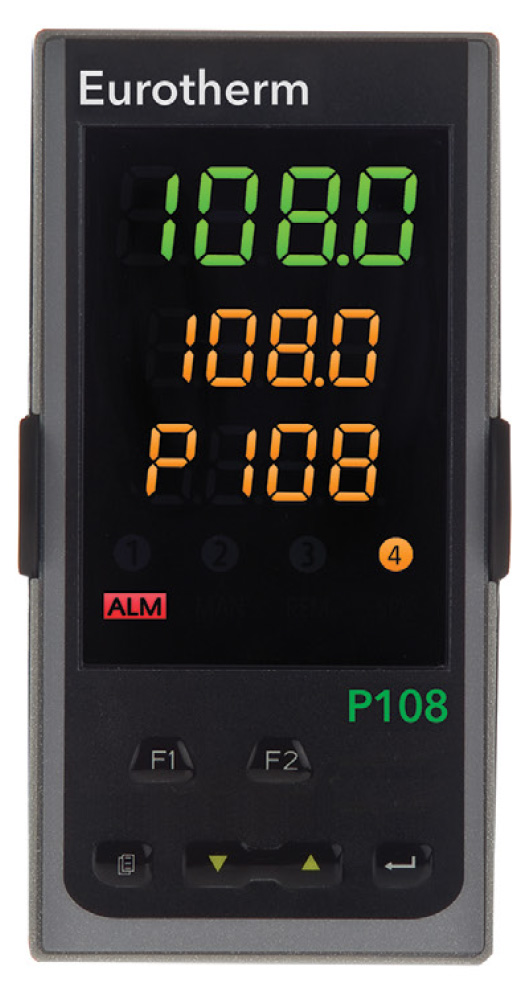

  • 8W max (P116 model) and 6W max (P108 and P104 models)
• 3-year warranty
