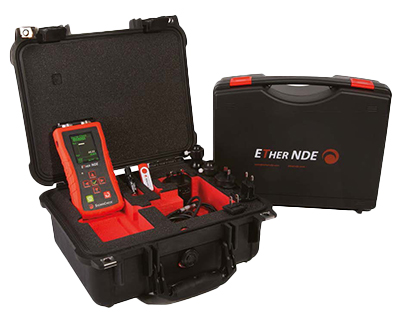

The ETher NDE SigmaCheck-2 Eddy Current Tester, KISIG001B, is an upgrade of the original SigmaCheck-2, KISIG001A. The new model includes an updated probe map design, upgraded PCB Board, increased battery life with new built-in lithium ion battery, and an improved setup calibration block design. It is designed to provide fast and accurate conductivity measurements with automatic temperature compensation and resistance to “edge effect”. The high resolution LCD display provides up to three decimal places’ precision, and an adjustable LED backlight.
The tester includes an ergonomic design with high impact, splash-proof, molded UL94-5VA flame-retardant ABS case, adaptable to rough environments. The battery lasts for over 12 hours, the firmware is field-upgradeable, and probes may be exchanged in the field via SD card.
Data may be stored and uploaded to a PC for record keeping and report generating. The real-time clock grants the user the ability to time and date stamp readings, making it easier to sort and organize measurements in Microsoft Excel.
Applications
Material verification & sorting
Heat treatment verification
Heat, fire, or lightning damage investigation
Material aging assessment (including alloys)
Measuring phosphor content of Cu alloys
Monitoring of deposition process for non-ferrous material on a non-ferrous substrate
Monitoring the condition of highly stressed parts
Forged & plated material verification
Non-conductive coating thickness measurement
Determining the purity / composition of materials (i.e. gold bullion and coins)
Aircraft structures (e.g. paint thickness measurement)
