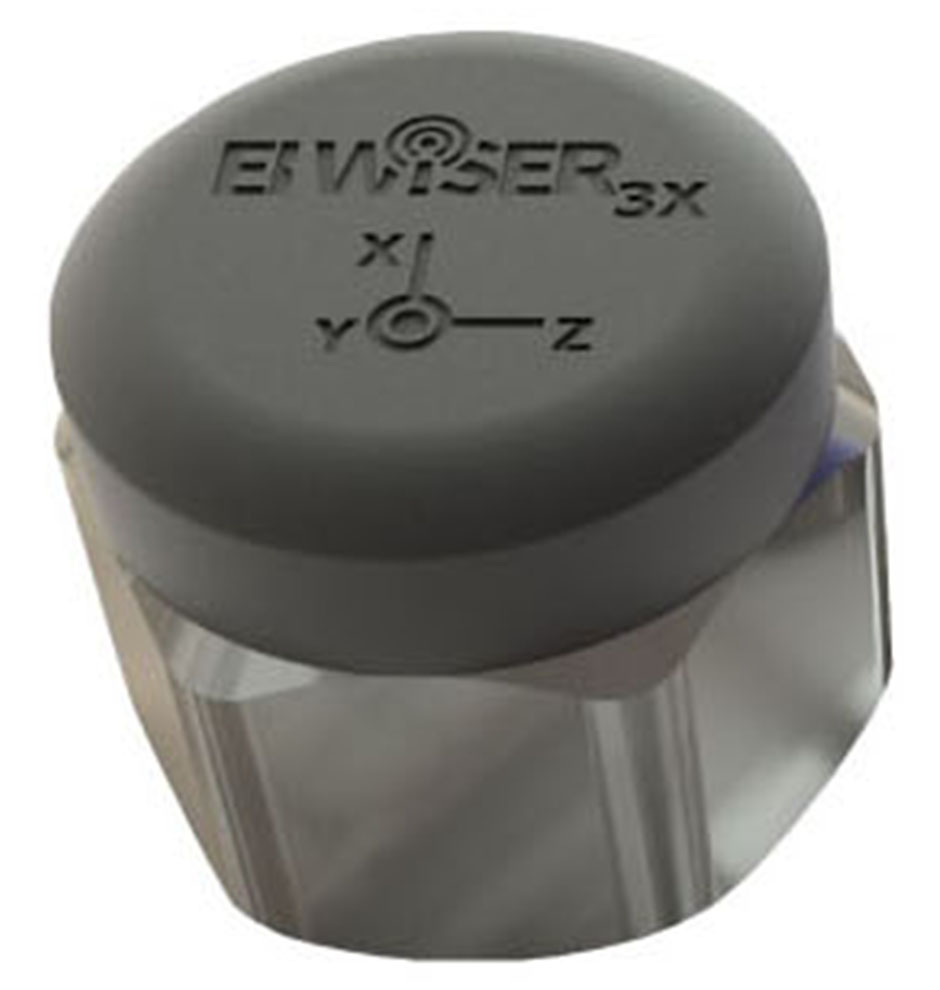

Erbessd Instruments WiSER 3X MINI Vibration Sensor

The Erbessd Instruments WiSER3X Mini can choose to record 1 or 3 axis and select the recording time to identify, predict, and prevent failures in rotating machinery. Detects most of the common problems for this type of machines including: mechanical looseness, eccentricity, resonance, natural frequencies, electrical noise, gear fault, belt issues, damaged shaft.

Transfer on-route and off-route information using your phone by uploading the information recorded from your phone into DigivibeMX using the QR Connect tool.

Features

• High Range model:
  • Spectral Noise: 630 µg/√Hz
  • Frequency Range: 10 kHz (x,y) and 5.1 kHz (z)
  • 6400 Resolution Lines
  • Max Frequency: 10000 Hz
• High Sensitivity model:
  • Spectral Noise: 130 µg/√Hz
  • Frequency Range: 4 kHz (x,y) and 1.8 kHz (z)
  • 6400 Resolution Lines
  • Max Frequency: 4000 Hz
• BLE 5.0 communication
• 50m recording range
• Temperature range from 20 to 140°F (-7 to 60°C)
• Configurable recording time
• Lithium battery CR2023 3V
• IP67 Protection
