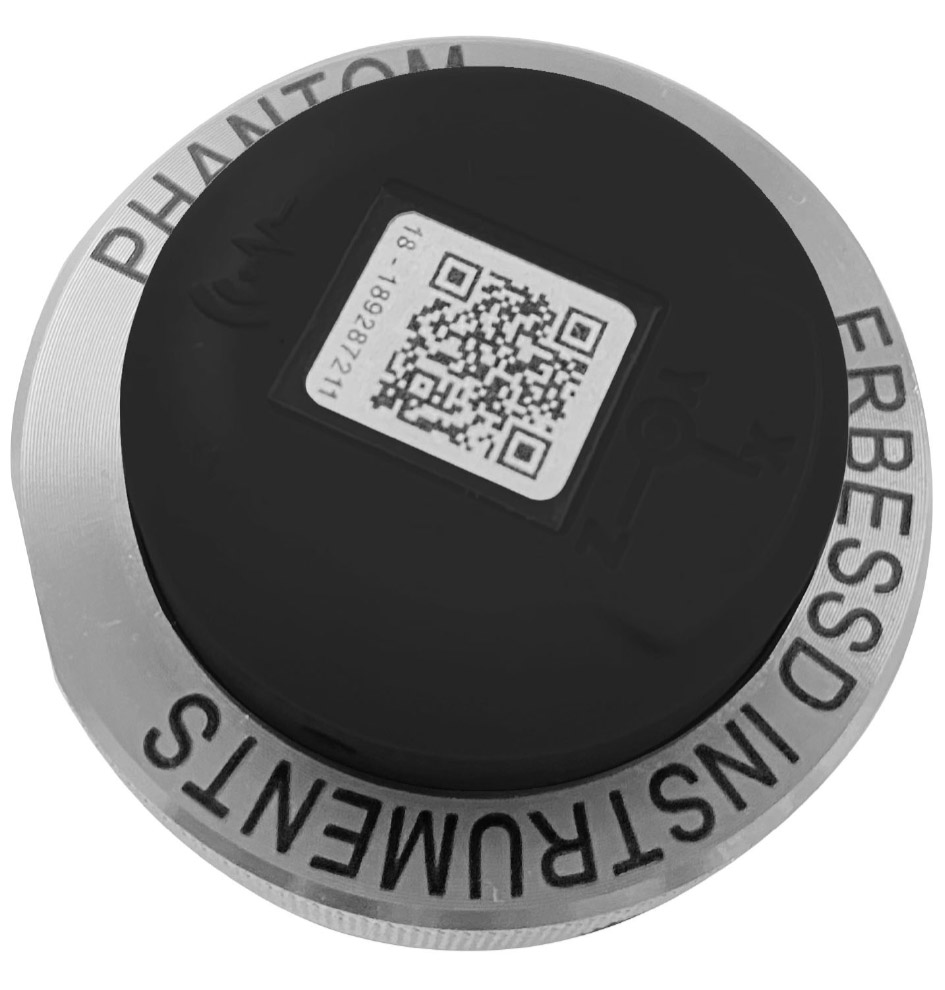

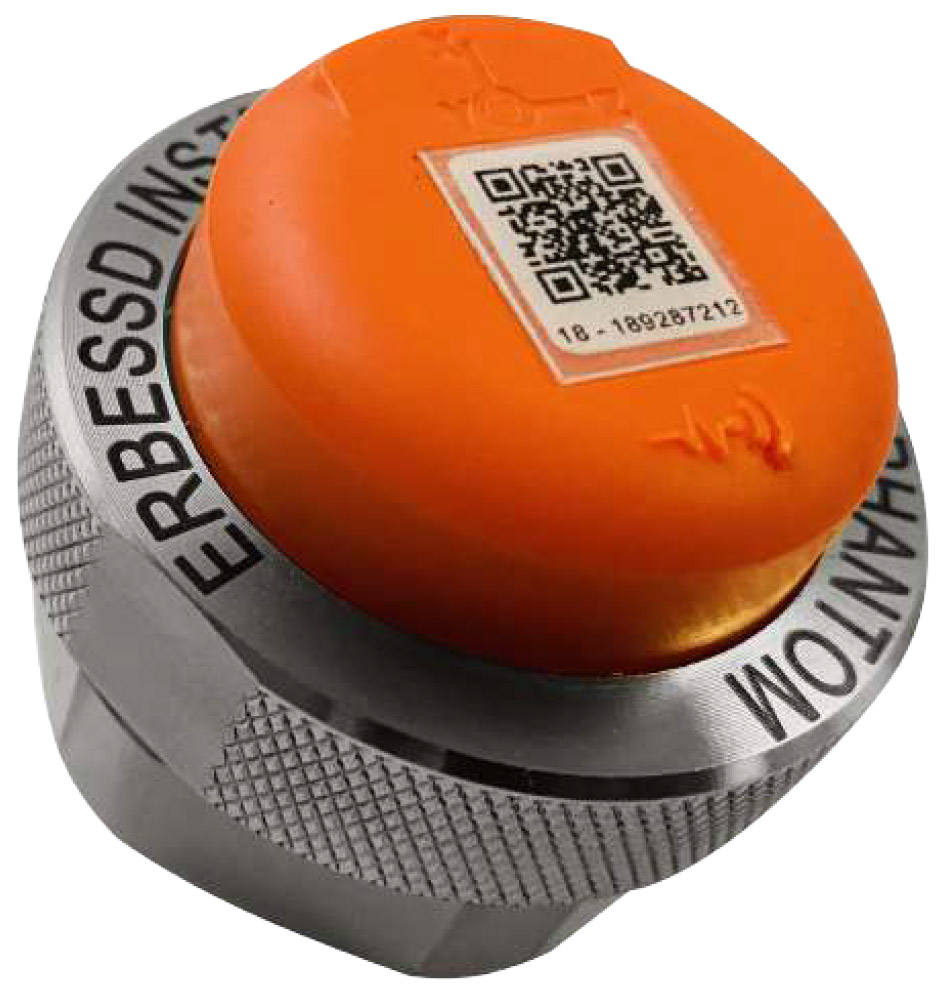

Erbessd Instruments Phantom Gen 3 Vibration Sensor

The Erbessd Instruments Phantom Gen 3 vibration sensor is designed to be compatible with any rotating machine. The design allows the sensor to be exposed to a majority of harsh environments, including 85°C (185°F) maximum temperature. The Phantom Gen 3 features an internal temperature sensor fully potted in epoxy that allows it to record the surface temperature of the machine with an accuracy of up to +/- 5°C (+/- 5°F).

Features

• Frequency range:
  • High range: 0.5Hz to 10kHz (X,Y), 0.5Hz to 5.1kHz (Z)
  • High Sensitivity: 0.5 Hz to 4 kHz (X,Y), 0.5 Hz to 1.8 kHz (Z)
• Sensing resolution (X, Y, Z):
  • High range: 240 μg
  • High Sensitivity: 60 μg
• -90dBm to -30dBm signal strength range
• MEMS sensor
• Bluetooth BLE 5.0 wireless protocol
• 2.4GHz operating frequency
• Lithium battery (CR2477)
• IP69 rated
