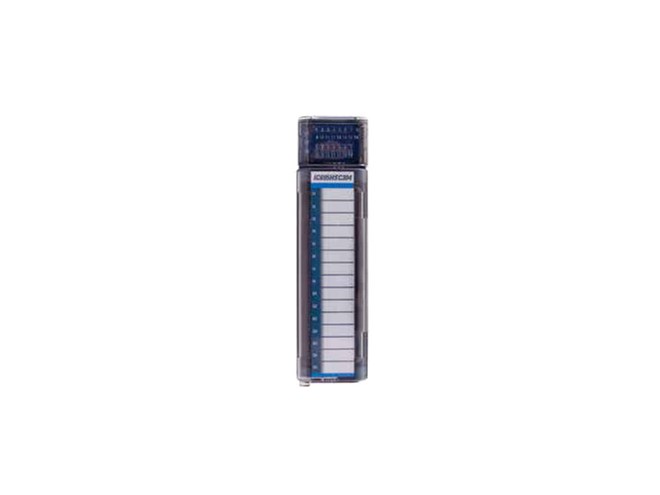

Emerson PACSystems Rx3i Motion High Speed Counting Modules

The Emerson Rx3i motion high speed counting modules can be used for a wide range of applications. The IC694APU300 features 1Mhz input frequency, expanded filtering, single ended, differential encoders, 32 bit counters, Z counter and windowing. The IC695HSC308 features high speed I/O processing, 8 counters, supports high speed counting, PLS (programmable limit switch), camming, input interrupts and pulse width timing.

Features

• IC694APU300:
  • High speed counter
  • 1Mhz input frequency
  • Expanded filtering
  • Single ended
  • Differential encoders
  • 32 bit counters
  • Z counter and windowing
• IC695HSC304:
  • High speed I/O processing
  • 4 counters
  • PLS (programmable limit switch)
  • Camming
  • Input interrupts and pulse width timing
• IC695HSC308:
  • High speed I/O processing
  • 8 counters
  • PLS (programmable limit switch)
  • Camming
  • Input interrupts and pulse width timing
