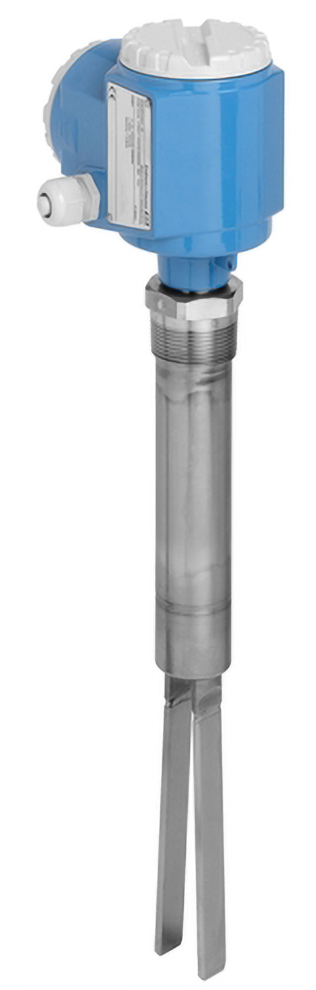

E+H Soliphant FTM51 Level Switch

E+H Soliphant FTM51 is a robust point level switch for use in silos containing fine-grained or powdery solids even with a low bulk density. Suitable for a wide range of applications with international certificates for use in dust or gas hazardous areas. Available with polished fork and stainless steel housing with Tri-Clamp or with aluminum housing and coated fork. Maintenance-free device for use in typical applications like: cereals, flour, cocoa, sugar, animal feed, dye powder, chalk.

Features

• Threads, flanges and hygienic process connection
• -60 to 540°F (-50 to 280°C) temperature
• -1 to +25bar (-14.5 to +360psi) pressure
• 11.81in to 157.48in (300mm to 4,000mm) sensor length
• 316L (3,2µm, 0,8 µm, PTFE coated, ETFE coated) sensor material
• International explosion protection certificates
• SIL2 in accordance with IEC 61508
