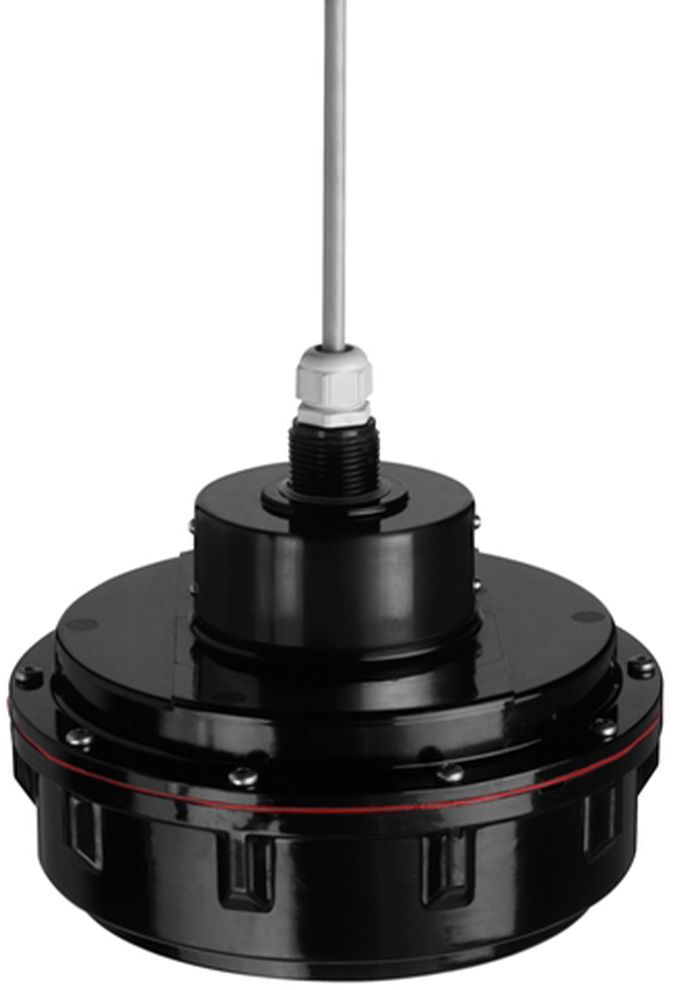

E+H Prosonic FDU95 Ultrasonic Level Sensor

The E+H Prosonic FDU95 Ultrasonic Level Sensor is for continuous, non-contact and maintenance-free level measurement of powdery to coarse bulk materials. The measurement is unaffected by dielectric constant, density or humidity and also unaffected by build-up due to the self-cleaning effect of sensors. Suited for explosion hazardous areas. Maximum measuring range in solids 45m (148ft).

Features

• Threaded process connections
• -40 to 176°F or 302°F (-40 to 95°C or 150°C) temp range
• 10 to 22psi (0.7 to 1.5bar) pressure range
• Maximum measuring range: solids: 148ft (45m)
• Blocking distance: 0.6m (2ft)
• Blocking distance: 0.7m / 80°C (2.3ft), 0.9m / 150°C (2.9ft)
• International explosion protection certificates
