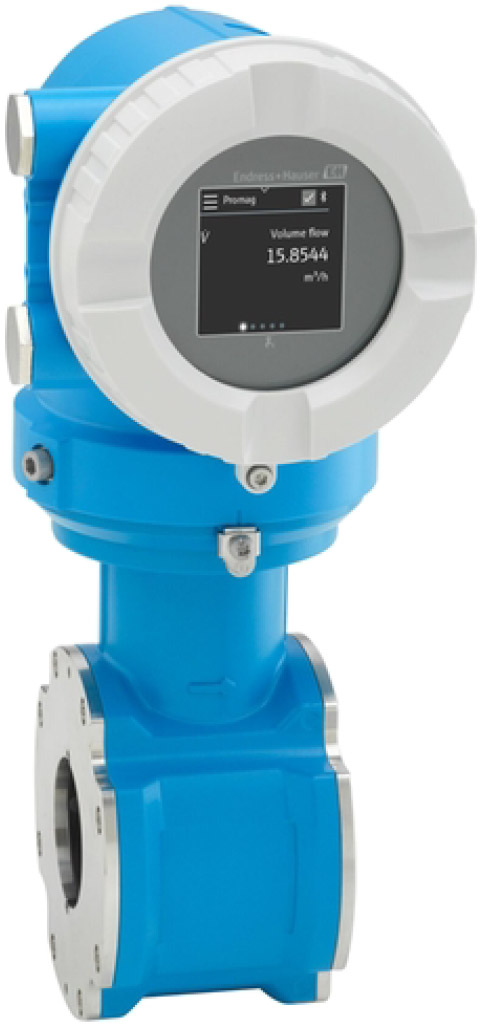

E+H Proline Promag D 10 Electromagnetic Flow Meter

The E+H Proline Promag D 10 Electromagnetic Flow Meter is designed for all basic water applications where space is at a minimum. With its straightforward hard- and software design, the Proline Promag D 10 simplifies every step in its life cycle from engineering to servicing at usual Endress+Hauser quality. Heartbeat Technology ensures measurement reliability and compliant verification.

Features

• Bidirectional measuring principle
• Chemical and process applications
• Measuring range:
  • 1 gal/min to 44,000 gal/min (4 dm³/min to 9600 m³/h)
• Max. measurement error:
  • Vol flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)
• Medium temperature range:
  • Liner material polyamide: 0 to 60°C (32 to 140°F)
• Wide variety of wetted materials
