E+H Micropilot FMR62 Radar Level Transmitter

product id: 30ec0b6e4be2
Manufacturer:
InstruHub is a leading supplier and reseller of Endress+Hauser Barriers, BTU Meters and Conductivity Sensors in UAE, and we ship to all major cities such as Dubai, Abu-Dhabi, Sharjah

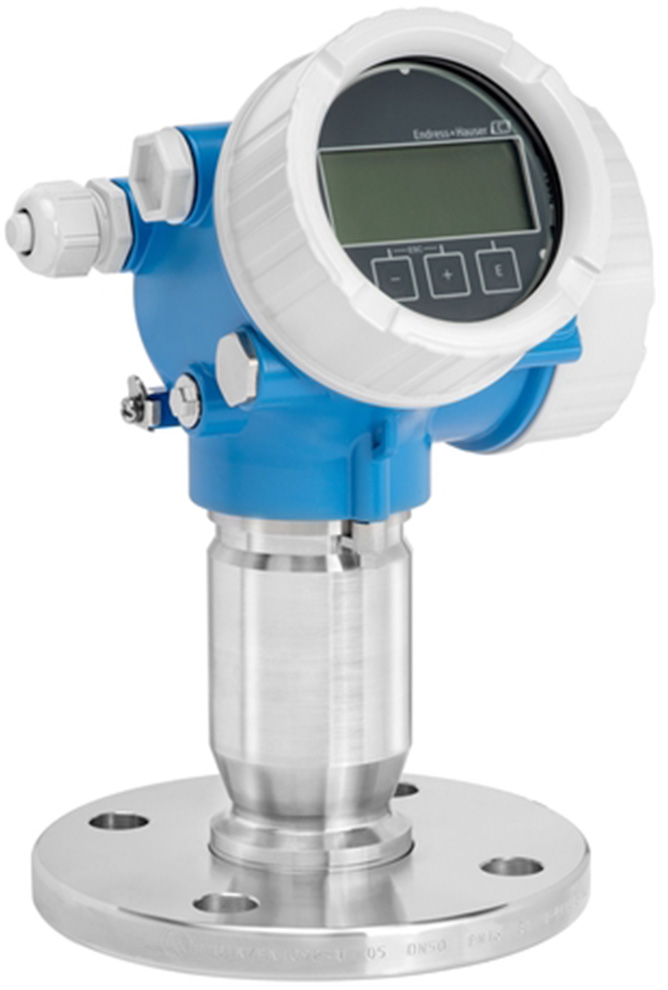

The E+H Micropilot FMR62 Radar Level Transmitter is the first 80GHz radar developed according to the international functional safety directive IEC 61508. For applications in aggressive liquids, FMR62 offers extraordinary advantages with its completely PTFE-filled and flush-mounted antenna. The integrated PEEK antenna allows very small process connections. The FMR62 free space radar offers maximum reliability due to improved algorithms and small beam angle. It also possesses the smart sensor functionality Heartbeat Technology.

Features

  • 80GHz level measurement
  • Applications with hygiene requirements
  • Heartbeat Technology
  • HistoROM data management
  • Multi-Echo Tracking evaluation
  • PTFE-filled and flush-mounted horn antenna
  • Thread or flange process connections
  • -40 to 392°F (-40 to 200°C) temp range
  • -14.5 to 362.6 psi (-1 to 25 bar) pressure range
  • 262ft (80m) maximum measuring range
  • ±0.04in (1mm) accuracy
  • 80GHz W-band

Why Buy from Instruhub:

  • Supplier of E+H Micropilot FMR62 Radar Level Transmitter in UAE
  • Best online prices for E+H Micropilot FMR62 Radar Level Transmitter
  • Wide range of Endress+Hauser products available in Dubai, Abu-Dhabi, Sharjah
  • Shipping at door with custom and duty included in price quote.

  • Instrument repair and calibration services provided.

  • InstruHub also provides DG Cargo service with as goods with Lithium Ion Batteries.
