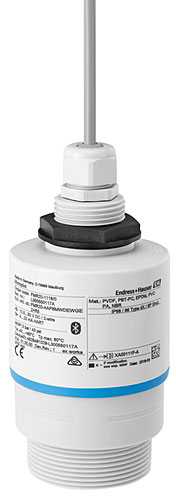

E+H Micropilot FMR20 Radar Level Transmitter

product id: 4f18ae70d616
Manufacturer:
InstruHub is a leading supplier and reseller of Endress+Hauser Barriers, BTU Meters and Conductivity Sensors in UAE, and we ship to all major cities such as Dubai, Abu-Dhabi, Sharjah

The E+H Micropilot FMR20 Radar Level Transmitter provides continuous non-contact level and flow (via linearization table) measurement and is a perfect application fit for the water & wastewater industry and utilities across all industries. Commissioning is possible via HART or wireless via app using Bluetooth® or with remote display. Signal curves can be shown via app on every Bluetooth®-enabled smartphone/tablet (iOS, Android). With the compact design, thanks to unique chip, the device is ideal for limited space applications.

Features

  • Non-contact radar measurement
  • Unique radar chip design
  • Water & wastewater and utilities in all industries
  • IP66, 68 / NEMA4x, 6P
  • PVDF body
  • Thread and flange process connections
  • -40 to 176°F (-40 to 80°C) temp range
  • -14.5 to 43 psi (-1 to 3 bar) process pressure
  • 10m (33ft), 20m (66ft) max measuring range
  • 0.08in (±2mm) accuracy
  • 26GHz measuring frequency

Why Buy from Instruhub:

  • Supplier of E+H Micropilot FMR20 Radar Level Transmitter in UAE
  • Best online prices for E+H Micropilot FMR20 Radar Level Transmitter
  • Wide range of Endress+Hauser products available in Dubai, Abu-Dhabi, Sharjah
  • Shipping at door with custom and duty included in price quote.

  • Instrument repair and calibration services provided.

  • InstruHub also provides DG Cargo service with as goods with Lithium Ion Batteries.
