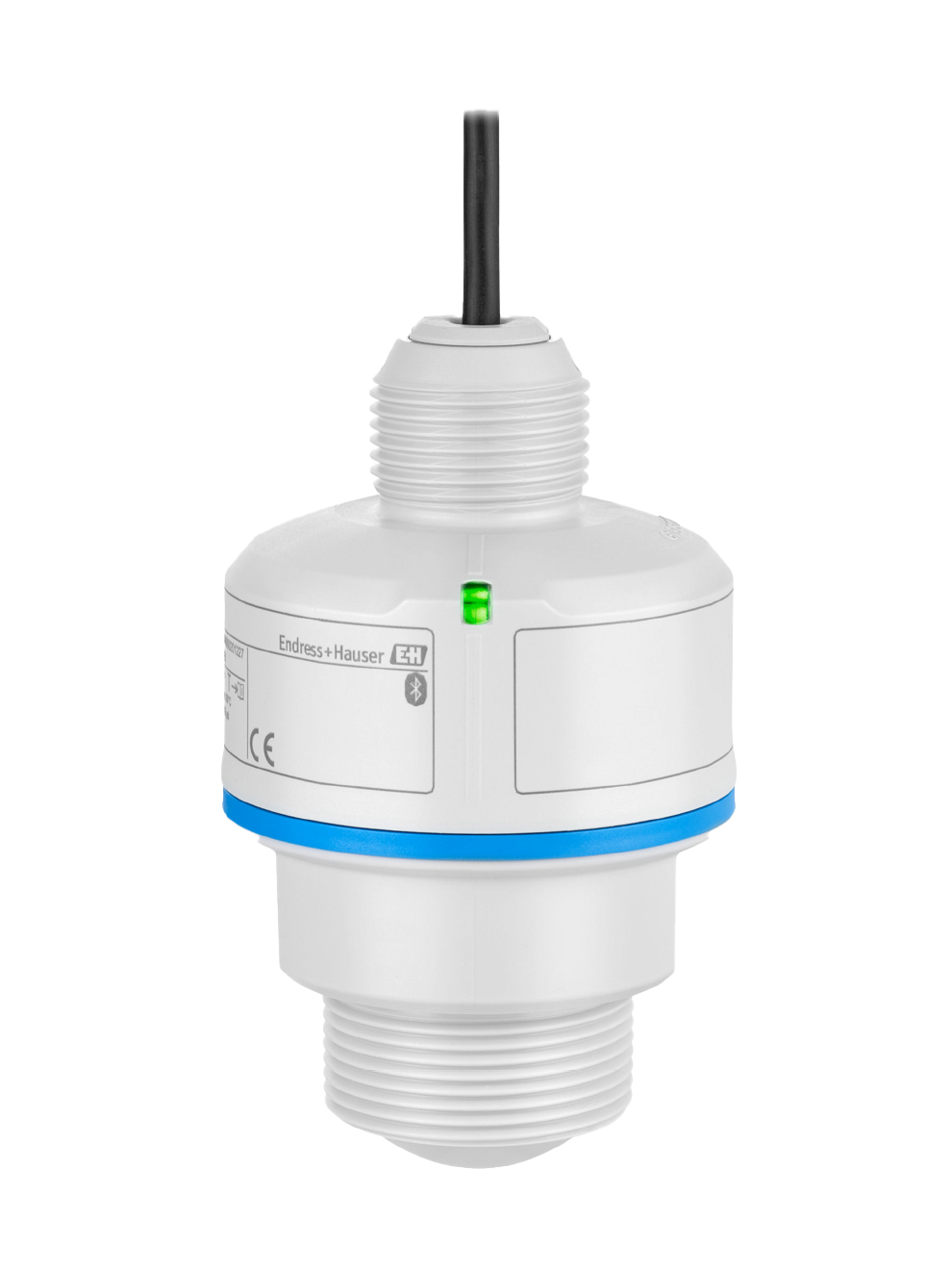

E+H Micropilot FMR10B Radar Level Sensor

The E+H Micropilot FMR10B Radar Level Sensor is a compact radar sensor designed for monitorization of liquids and solids in waste, wastewater, and various other utilities and industries. The Micropilot FMR10B provides continuous non-contact level measurement with 80GHz technology, and Bluetooth enabled operation via the SmartBlue app. Each unit comes with a standard-issued cable of 10m (32ft). Process connections for the cable entry and antenna head are offered in G or NPT thread. Installation of the sensor is quick and easy to complete with guided setup.

Applications:
Open basins
River monitoring
Storage tanks
Silos
Stockpiles

Features

• Accuracy: +/- 5mm (0.2in)
• Process temperature: -40 to 60°C (-40 to 140°F)
• Process pressure/overpressure limit: -1 to 3bar (-14.5 to 43psi)
• Measurement distance: 10m (32.8ft) max
• Main wetted parts: PVDF, PBT/PC
• Communication: 2-wire (4 to 20mA)
  • Bluetooth operation optional
• Frequency: W-Band (80GHz)
• LED Status indicator
• Process Connection:
  • Cable entry: 1in G, 1in NPT
  • Antenna head: 1-1/2in G, 1-1/2in NPT
• Protection rating: IP66/68 / NEMA Type 4X/6P
• Extended 5-year warranty, please contact an engineer for details
