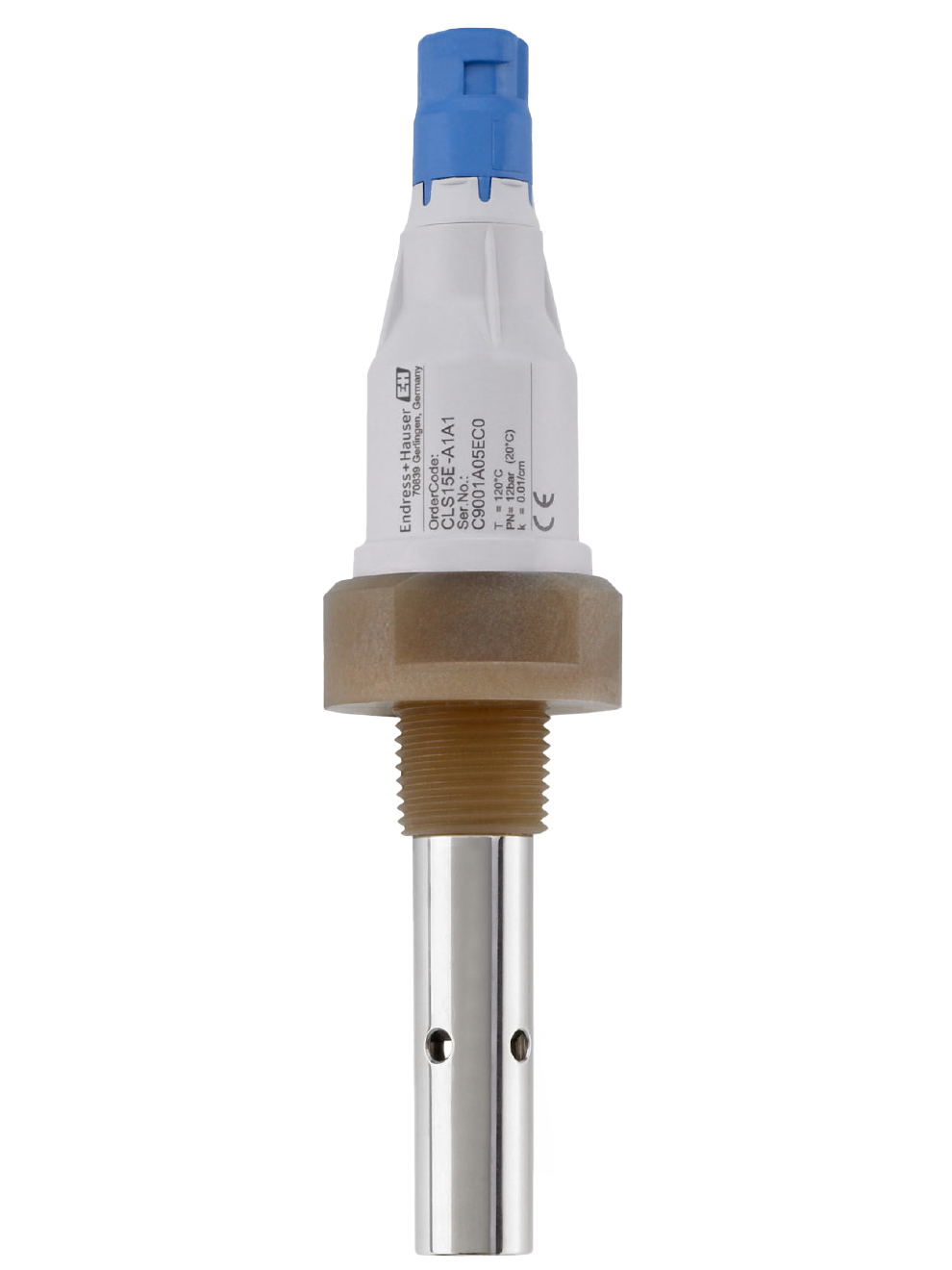

E+H Memosens CLS15E Conductivity Sensor

The E+H Memosens CLS15E Conductivity Sensor is a 2-electrode conductivity cell with coaxially arranged electrodes, for measurements in pure and ultrapure water. The CLS15E, built to replace the CLS15D, has a high measuring accuracy at low conductivities thanks to the individual measurement of cell constant. The compact design allows for easy pipe or flow assembly installation. With polished stainless steel electrodes the CLS15E can be sterilized up to 140°C (284°F), making it easy to clean and resistant to corrosion.

Thanks to the inbuilt Memosens 2.0 technology, users benefit from extended storage of calibration and process data, as well as maximum process safety via non-contact inductive signal transmission. With a low maintenance design and long operating life, the CLS15E is a high value, cost-friendly addition to the market.

Applications
Monitoring of ion exchangers
Boiler feedwater
Ion exchangers
Reverse osmosis
Cooling water
Distillation
Chip cleaning

Features

• Measurement range:
  • k=0.01: 0.04 to 20µS/cm
  • k=0.1: 0.10 to 200µS/cm
• Process temperature:
  • Threaded with fixed cable:
    • -20 to 100°C (-4 to 212°F)
  • Threaded with plug-in head:
    • -20 to 120°C (-4 to 248°F)
• Process pressure:
  • 13 bar at 20°C (188 psi at 68°F) absolute
  • 1 bar at 120°C (14 psi at 248°F) absolute
• Material:
  • Electrode: stainless steel 1.4435
  • Electrode shaft: PES
• Ex certifications available: ATEX, NEPSI, CSA, IECEx, INMETRO, EAC Ex
• IP68
• Inspection certificate EN 10204 3.1 available
