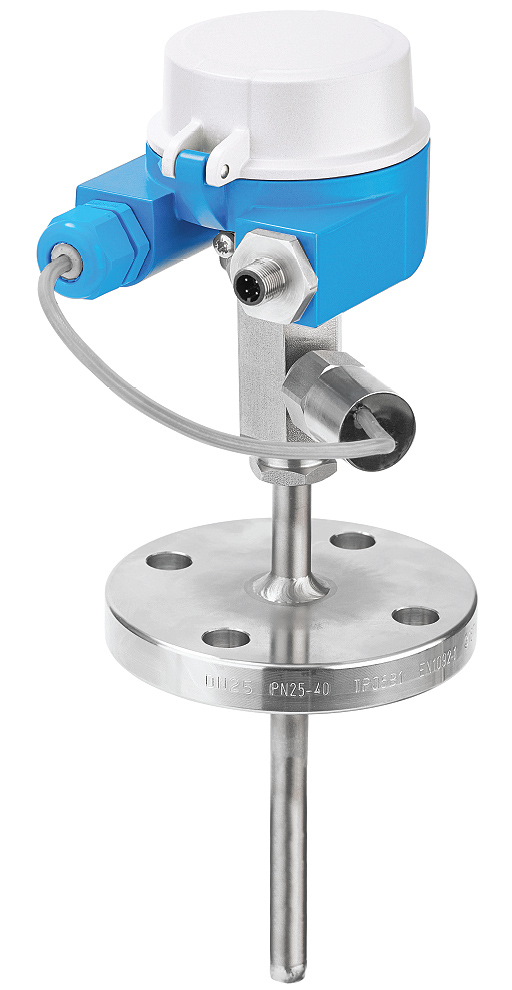

E+H iTHERM ModuLine TM131 Temperature Sensor

The E+H iTHERM ModuLine TM131 temperature sensor contains a second process barrier, or a ‘dual seal.’ This second barrier allows a user to see health status information. Different configurations of this sensor can offer different usages: QuickSens gives a faster response time, StrongSens allows for vibration resistance for plant safety, and QuickNeck has a tool-free recalibration. There is also optional Bluetooth connectivity with this sensor.

Depending on configuration, this temperature sensor has a measuring range of –328 to 2,012°F (–200 to 1,100°C) as well as a pressure range up to 100 bar (1450 psi). There are international certifications available for explosion protection according to ATEX, IECEx, CSA C/US and NEPSI. Additionally, this E+H temperature sensor has a degree of protection up to IP 68.

Features

• Measuring range: –328 to 2012°F (–200 to 1,100°C)
• Pressure range: up to 100bar (1450psi)
• Immersion length: up to 4,500mm (177in)
• Surface roughness Ra: < 0.76μm (0.03μin)
• Accuracy
  • Class AA acc. to IEC 60751
  • Class A acc. to IEC 60751
  • Class B acc. to IEC 60751
  • Class special or standard acc. to ASTM E230
  • Class 1 or 2 acc. to IEC 60584-2
• Certification(s): ATEX, ATEX IECEx, NEPSI, IECEx, EAC Ex, CSA C/US, IN METRO, SIL, MID, DNV/GL
