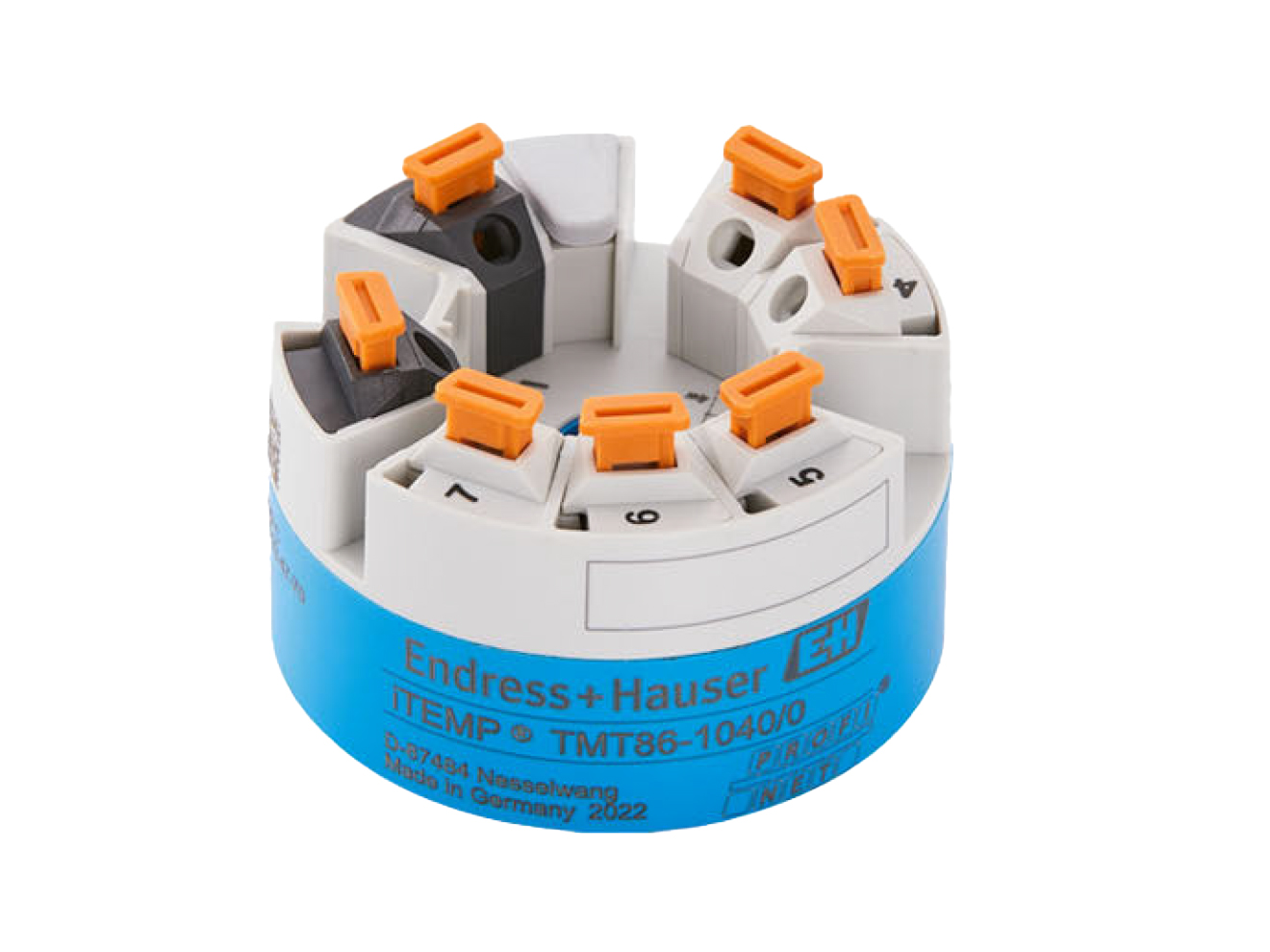

The E+H iTEMP TMT86 Head Mount Temperature Transmitter is a PROFINET enabled dual-channel device, that not only converts signals from RTD sensors and thermocouples, but transfers resistance and voltage signals via Ethernet as well. Highly accurate readings are supported via sensor-transmitter matching.

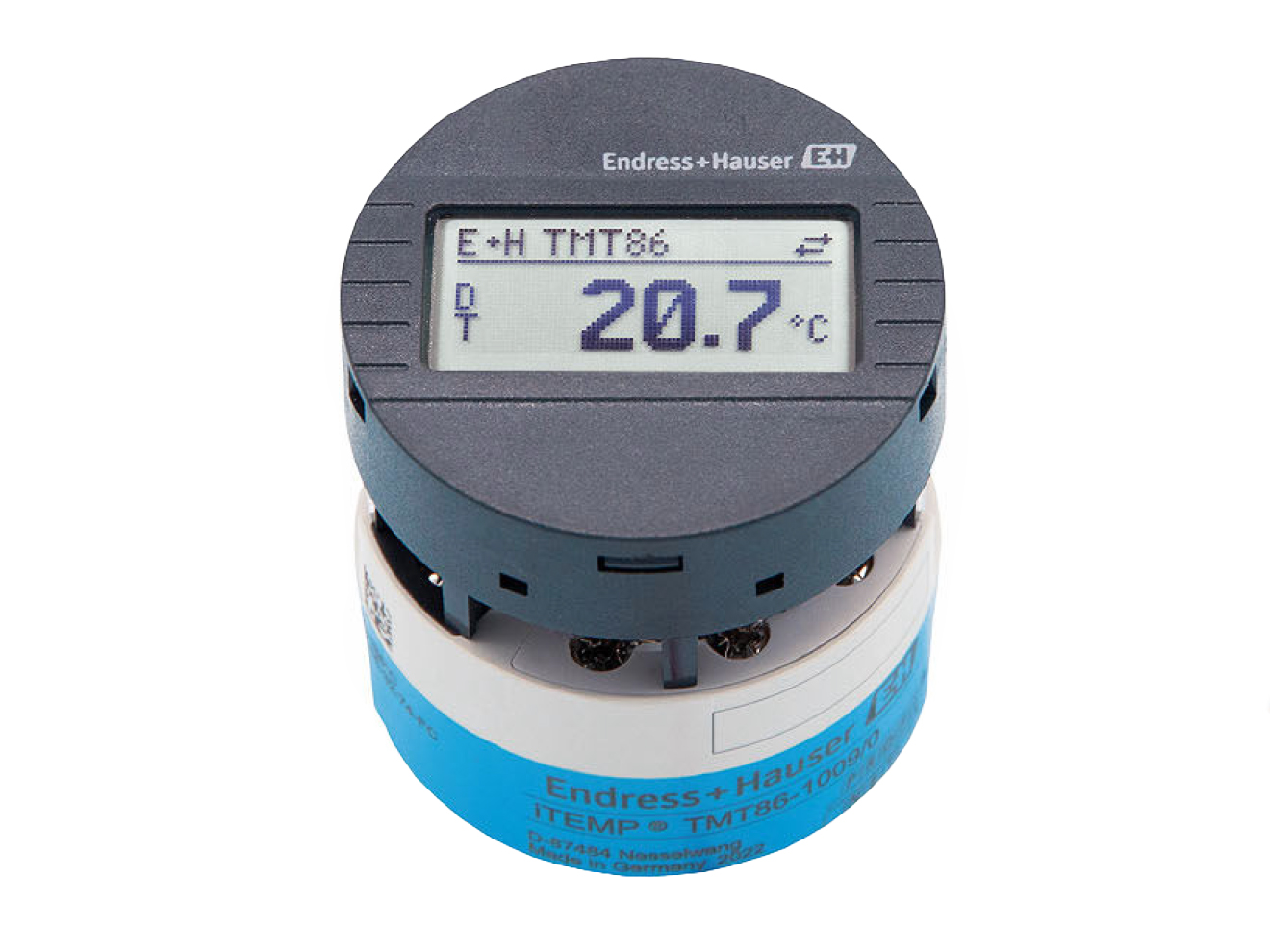

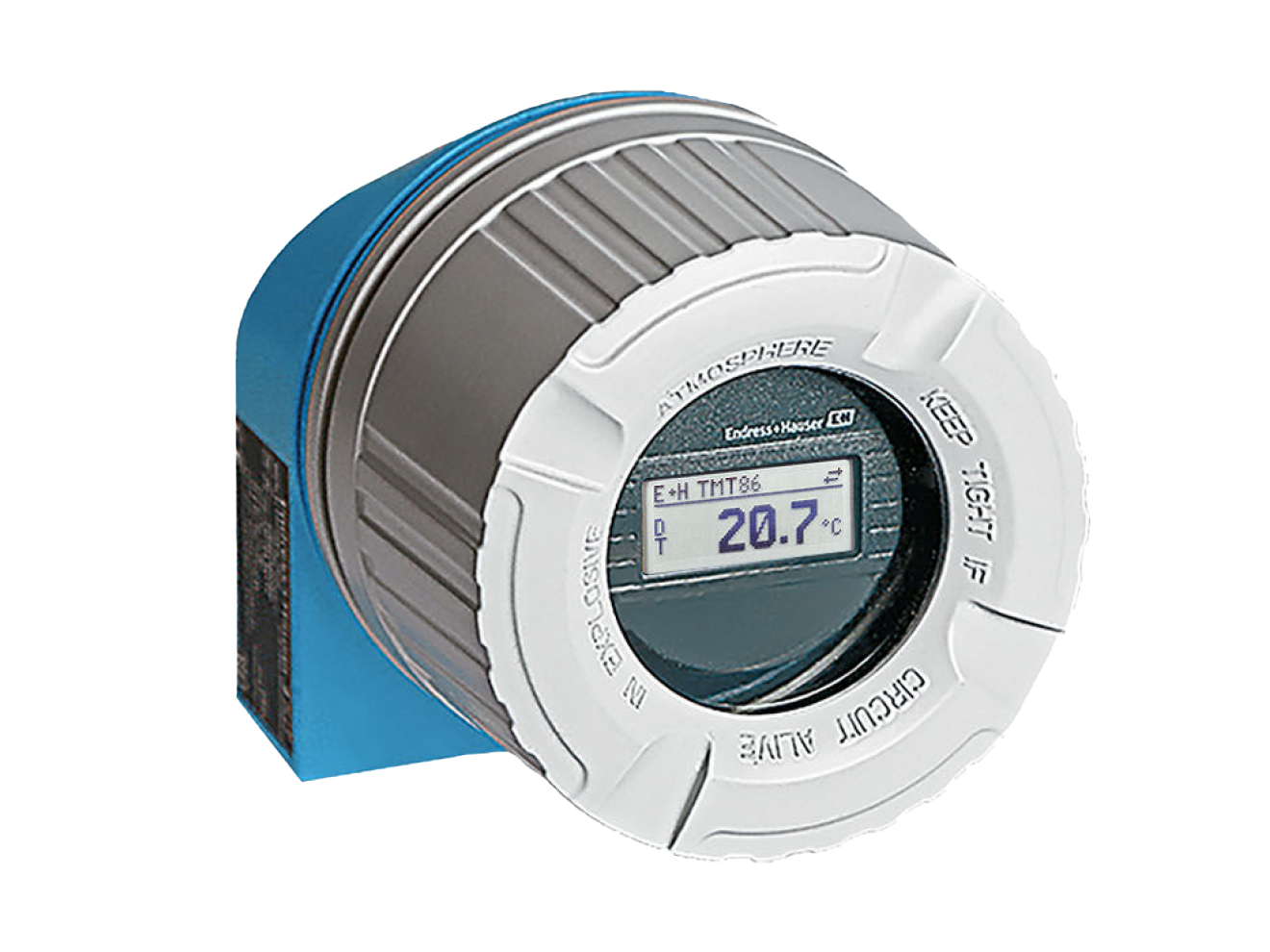

Standard diagnostic functions of the TMT86 include corrosion detecting (NAMUR NE89), incorrect wiring, internal device errors, overrange/underrange detection, and out-of-range ambient temperature detection. The two channels are galvanically isolated, with measured values able to be displayed on-site through configuration with the E+H TID10 Transmitter Display Head. A wide range of field housings with or without display windows are also available for Ex d environmental needs. Hazardous area approvals offered through Zone 1.
