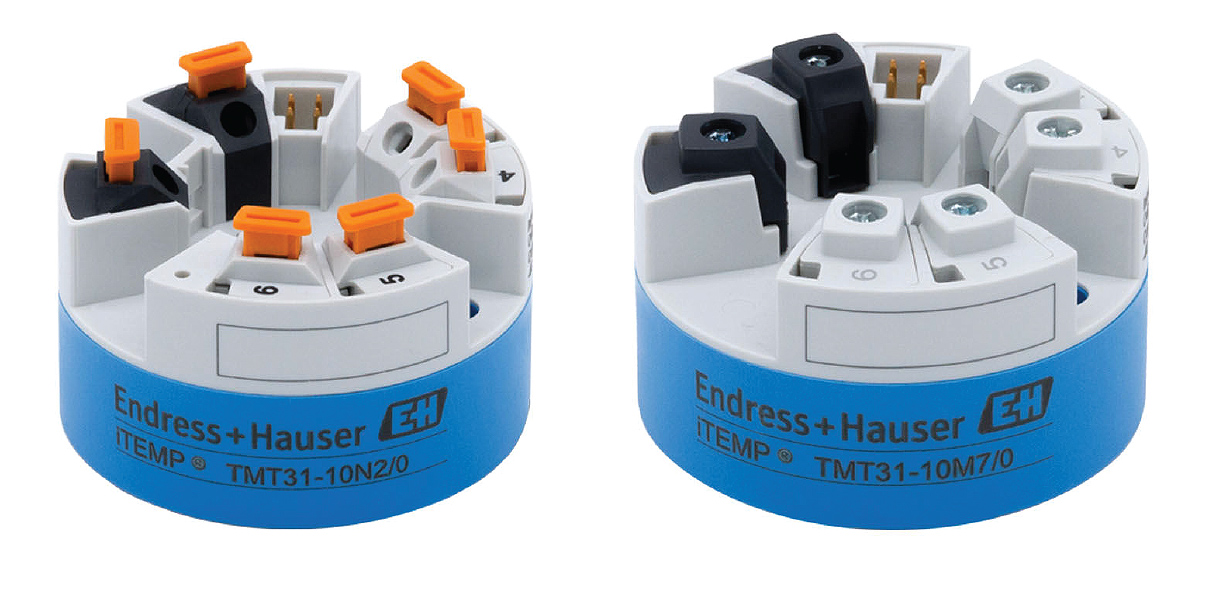

E+H iTEMP TMT31 Head Mount Temperature Transmitter

The E+H iTEMP TMT31 head mount temperature transmitter provides temperature measurement for various industrial and hygienic process applications. Configurated options include push-in terminals for tool-free wiring during installation. Transmitter-sensor matching is done using Callendar-Van Dusen linearization for critical measurement points​. Additionally, diagnostics information is done according to NAMUR NE 107.

Installation is done in terminal heads Form B as per DIN EN 50446. The device is available pre-configured or can be parametrized using free software tools (requires FXA291 or TXU10)​. There is a single RTD sensor input for Pt100 or Pt1000 (2-/3- or 4-wire) sensor and a 4 to 20mA analog output. The sensor is certified for use in Zone 2 (Ex ec) / Div. 2 areas.

Features

• Input: 1x Pt100 / Pt1000
• Output: 1 x analog 4 to 20mA
• Accuracy: (Pt100, Pt1000, -58 to 482°F) <= 0.18°F, (Pt100, Pt1000, -50 to 250°C) <= 0.1K
• Auxiliary power supply: 10 to 36 V DC
• Certification
  • ATEX II3G Ex ec IIC Gc
  • CSA C/US General Purpose
  • CSA C/US NI Cl.I Div.2 Gr.A-D,Ex ec IIC Gc
  • ATEX II3G Ex ec IIC Gc + CSA C/US Ex ec IIC Gc
  • DNV (GL) marine approval
• Configurable or factory-set fixed parameters
• Certified for use in Zone 2 (Ex ec) / Div. 2 areas
• Extended 5-year warranty, please contact an engineer for details
