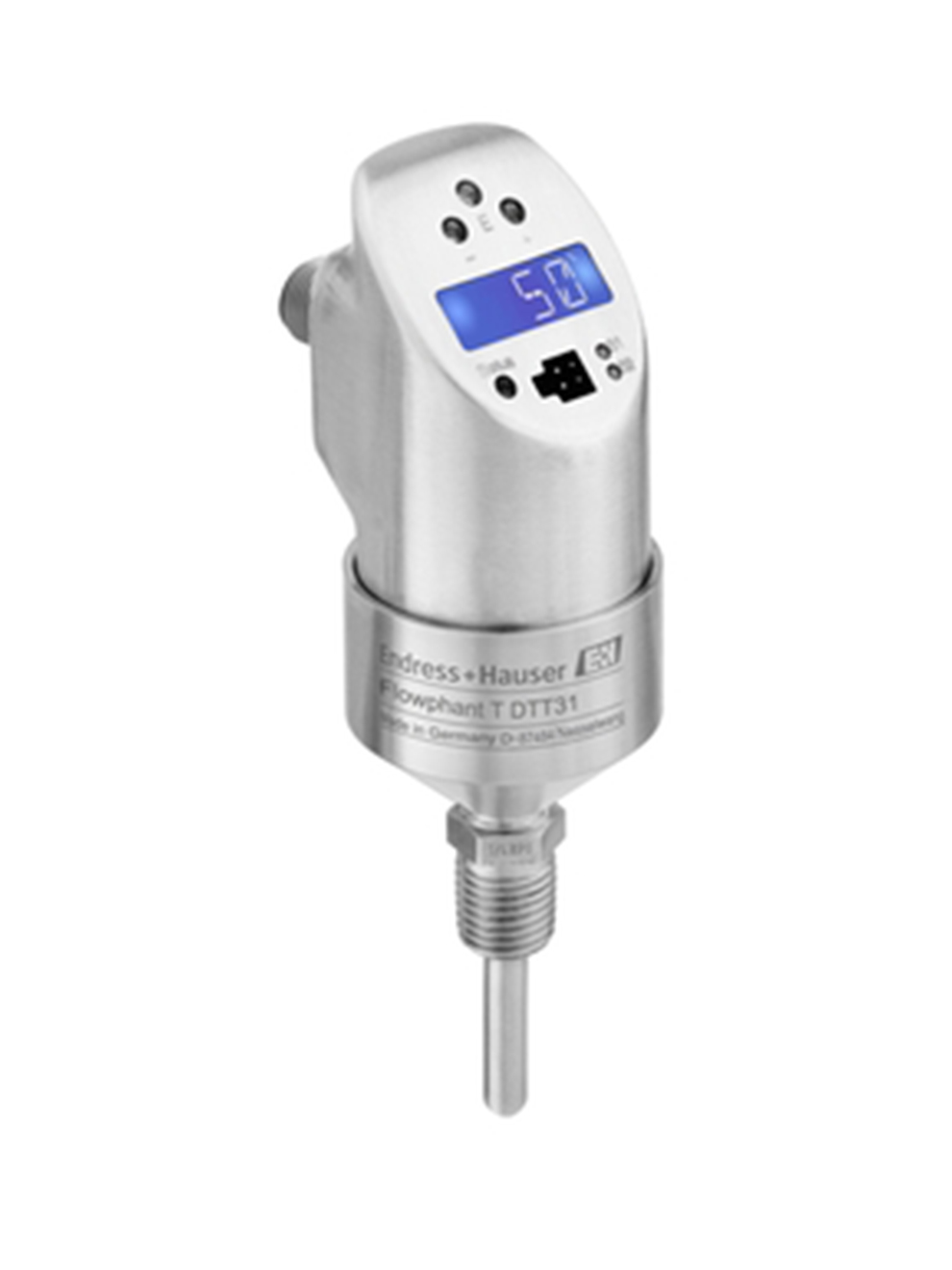

E+H Flowphant T DTT31 Flow Switch

The E+H Flowphant T DTT31 Flow Switch measures relative mass flow rates of liquid mediums with virtually no pressure loss. The DTT31 can be configured with a second switch output or 4 to 20mA analog output for temperature monitoring or flow rates output as a percentage. NPT and G male threaded stainless steel connections offer adaptable installation for numerous applications. Function checks and processing information happen onsite thanks to the digital LCD display. A 310 degree rotational top house section makes for ready display access in various installation positions.

The E+H Flowphant T DTT31 Flow Switch:
Cooling water circuit monitoring
Leak monitoring
Lubrication circuit monitoring
Filter monitoring

Features

• Measuring principle: thermal
• Nominal diameter: DN 25 to 1000 (1 to 40in)
• Max measurement error: 2 to 10%
• Max process pressure: 100bar (1740psi)
• Measuring range: 0.03 to 3 m/s (0.1 to 9.84 ft/s)
• Medium temperature range:
  • -20 to 85°C (-4 to 185°F)
  • CIP-able to 130°C / 266°F
• Display: LED, LCD
• Output(s):
  • 1 x PNP switchable output
  • 1 x 4 to 20mA analog output
• IP66
• Extended 5-year warranty, please contact an engineer for details
