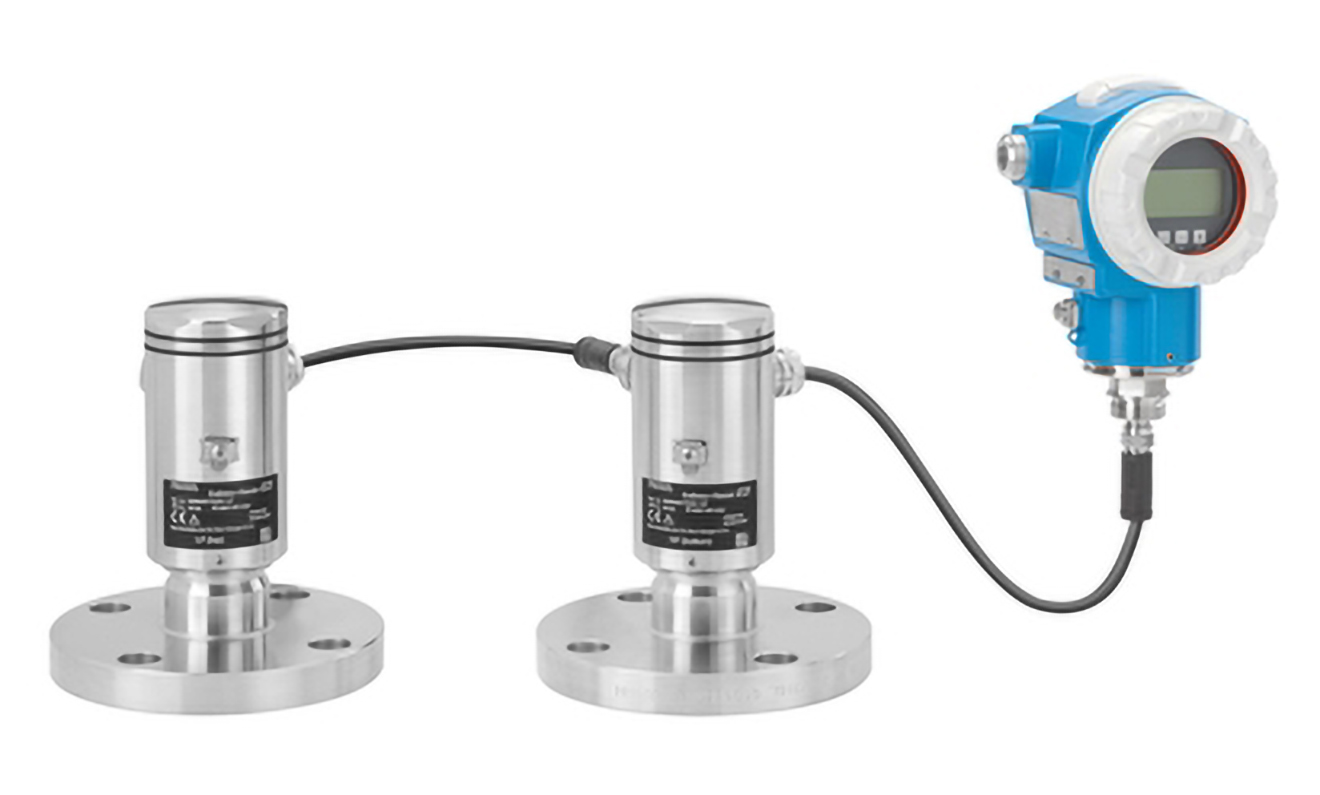

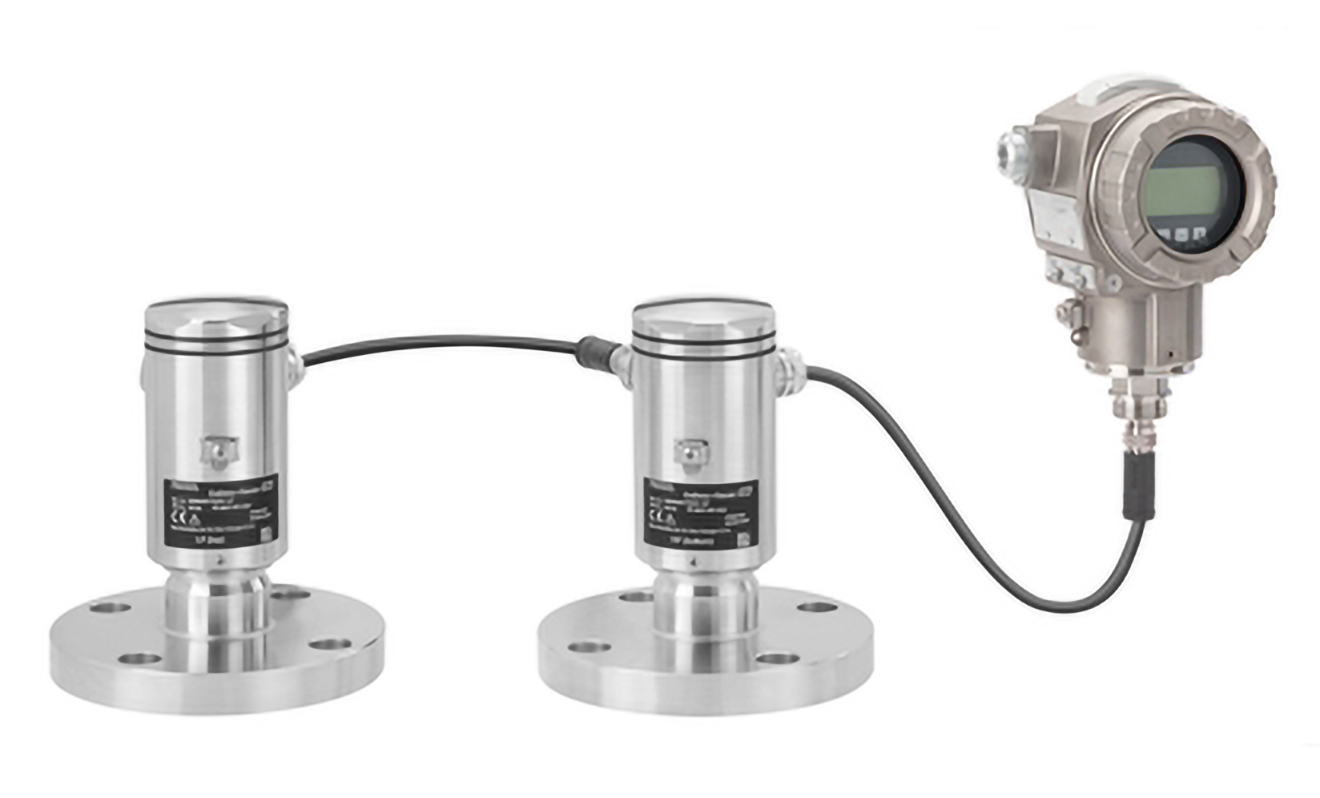

E+H Deltabar FMD72 Pressure System

The E+H Deltabar FMD72 is a differential pressure system, used to measure the pressure, level, volume or mass of liquids in pressurized tanks or distillation columns/evaporators. The high pressure sensor (HP) measures the hydrostatic pressure. The low pressure sensor (LP) measures the head pressure. The level is calculated in the transmitter using these two digital values. The electronic dp system eliminates issues of traditional differential pressure measurements.

Features

• Threads, flanges and hygienic process connections
• -40 to 257°F (-40 to 125°C), optional 480°F (250°C) process temperature
• 400mbar to 40bar (6 to 600psi) measuring range
• Single sensor up to ±0.05%, system up to ±0.07% accuracy
• 4 to 20 mA HART supply / communication
• ATEX, FM, CSA, CSA C/US IEC Ex, NEPSI, INMETRO
• NACE MR0175, EN10204-3.1
• FDA
