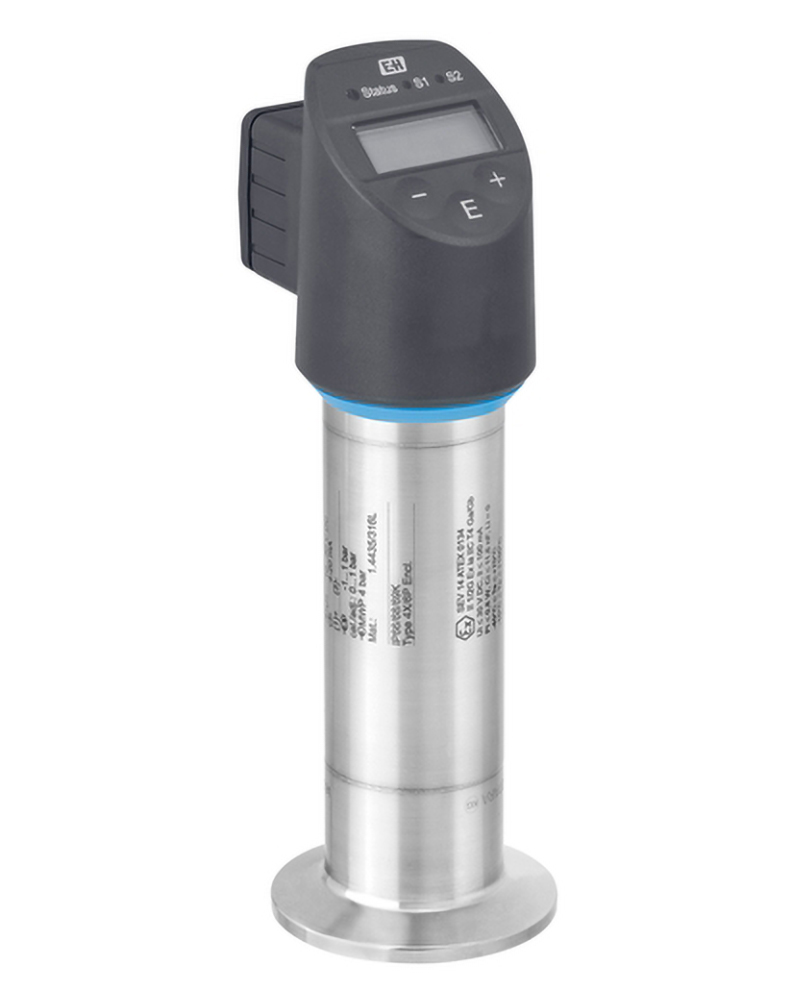

E+H Ceraphant PTP33B Pressure Switch

The E+H Ceraphant PTP33B is a price-attractive pressure switch with metal diaphragm for safe measurement and monitoring of absolute and gauge pressure. The pressure switch with compact design is extremely stable and overload resistant. PTP33B with stainless steel housing is 3-A and EHEDG approved. The IO-Link capability allows easy integration and parametrization of the device.

Features

• 14 to 212°F (-10 to 100°C); 275°F (135°C) for max. 1h process temperature
• -4 to 158°F (-20 to 70°C) ambient temperature
• 400mbar to 40bar (6 to 600psi) process pressure
• Up to ±0.3% accuracy
• M24 thread process connection
• DIN11851, Tri Clamp, SMS, Varivent hygienic process connection
• EN 10204-3.1
• FDA concurring, 3A, EHEDG, EG1935/2004
• Extended 5-year warranty, please contact an engineer for details
