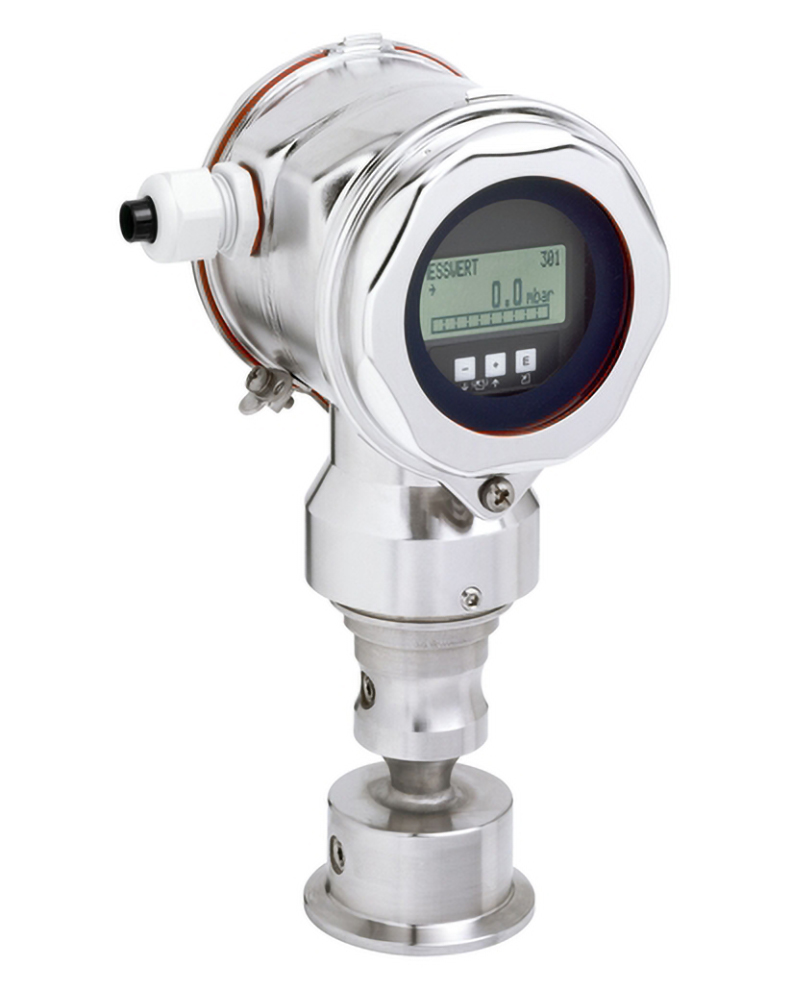

E+H Cerabar PMP75 Pressure Transmitter

The E+H Cerabar PMP75 digital pressure transmitter with metal diaphragm seal is typically used in process and hygiene applications for pressure, level, volume or mass measurement in liquids or gases. Suitable for high pressure as well as extreme process temperature applications from -70 up to 400°C (-94 to 750°F). Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. Designed according to IEC 61508 for use in SIL2/3 safety applications.

Features

• Two chamber aluminum or stainless steel (316L) housing.
• Threads, flanges or hygienic process connections
• -94 to 752°F (-70 to 400°C) process temperature
• -1/0 up to 400bar (-15/0 up to +6,000psi) pressure
• 1050bar (15,200psi) process pressure absolute/max overpressure limit
• 400 mbar to 400 bar (6 psi to 6000 psi) pressure measuring range
• ±0.075% accuracy
• 7000m (22.966ft) H2O max measuring distance
• Supply / Communication
  • 4 to 20mA HART:
  • 10.5 to 45V DC
  • Ex ia: 10.5 to 30V DC
  • PROFIBUS PA /
  • FOUNDATION Fieldbus:
  • 9 to 32V DC
• ATEX, FM, CSA, CSA C/US, IEC Ex, JPN Ex, INMETRO, NEPSI, EAC
• Overfill prevention WHG, SIL
• EN 10204-3.1, NACE MR0175, MR0103
• 3A, EHEDG
• GL/ ABS
