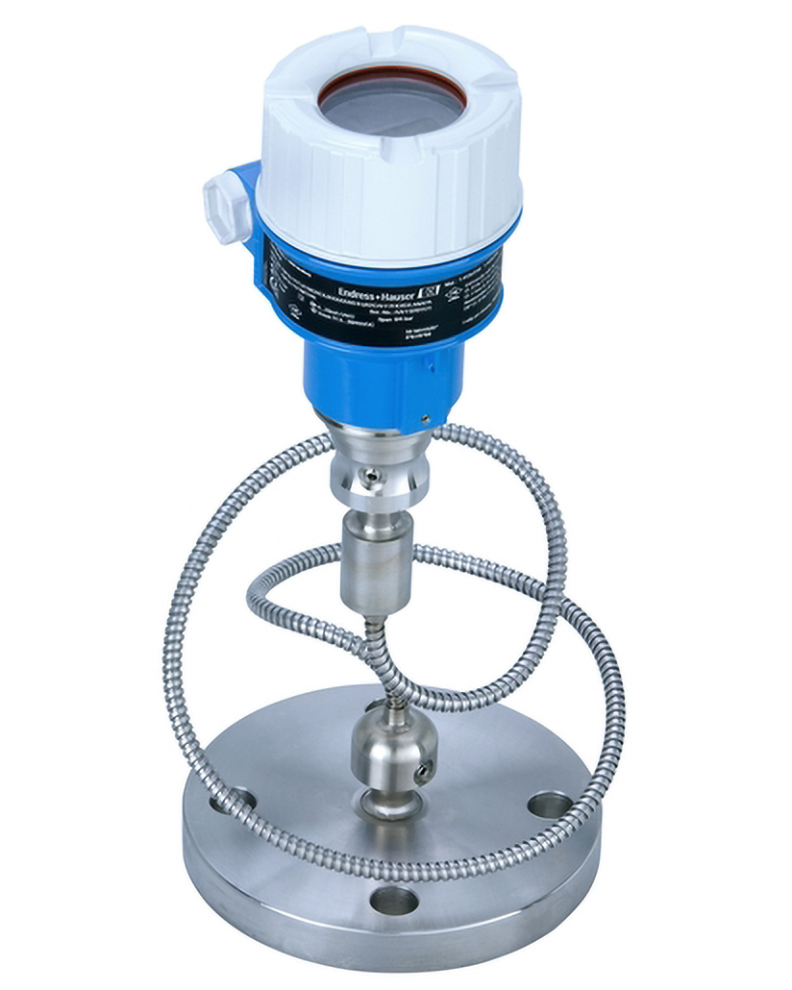

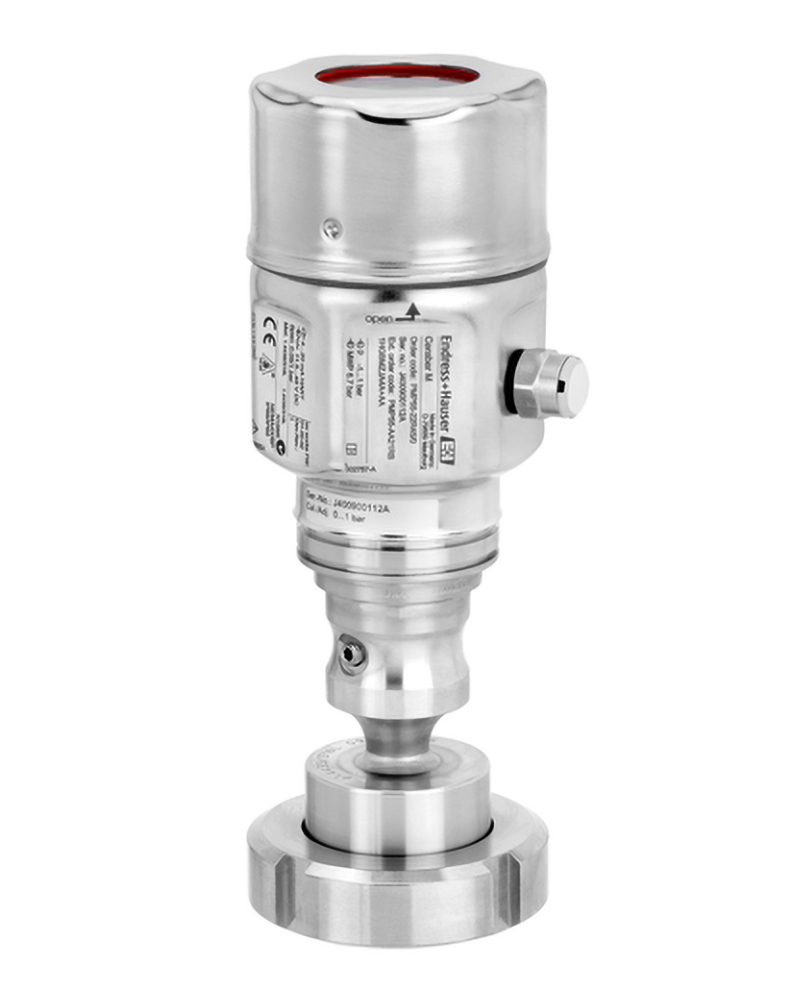

E+H Cerabar PMP55 Pressure Transmitter

The Cerabar PMP55 digital pressure transmitter with metal diaphragm seal is typically used in process and hygiene applications for pressure, level, volume or mass measurement in liquids. Suitable for high pressure as well as extreme process temperature applications from -70 up to 400°C (-94 to 750°F). Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 and IEC 61511.

Features

• Single chamber aluminum or stainless steel (316L) housing.
• Threads, flanges or hygienic connections process connections
• -94 to 752°F (-70 to 400°C) process temperature
• -1/0 up to +400bar (-15/0 up to +6,000psi) measuring ranges
• ±0.15%, accuracy “Platinum” ±0.075%
• 13,123ft (4000m) H2O max measurement distance
• 4 to 20mA HART: 11,5 to 45V DC; Ex ia: 11,5 to 30V DC
• PROFIBUS PA, FOUNDATION Fieldbus
• ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI, SIL
• 3A, EHEDG, CoC ASME-BPE
• GL/ ABS/ LR/ BV/ DNV
