The E+E HTS801 humidity and temperature sensor is designed to meet high demands of stable and highly accurate measurement of relative humidity and temperature under challenging conditions. The HTS801 is suitable for a wide range of applications from -112 to 356°F and up to 300 bar (4,350 psi).
The heated high-end E+E RH and T sensing element enables reliable and long-term stable measurement in extremely humid or chemically polluted environments. The monolithic structure of the RH / T sensing element, protected by the E+E proprietary coating, allows for fast recovery after condensation or chemical contamination.
The six HTS801 versions are available with several probe and cable lengths. With various heating modes, the HTS801 can be perfectly tailored to the specific needs of each measurement task. It features an IP65 / NEMA 4 polycarbonate or stainless-steel enclosure which can accommodate various interface modules and electrical connection options.

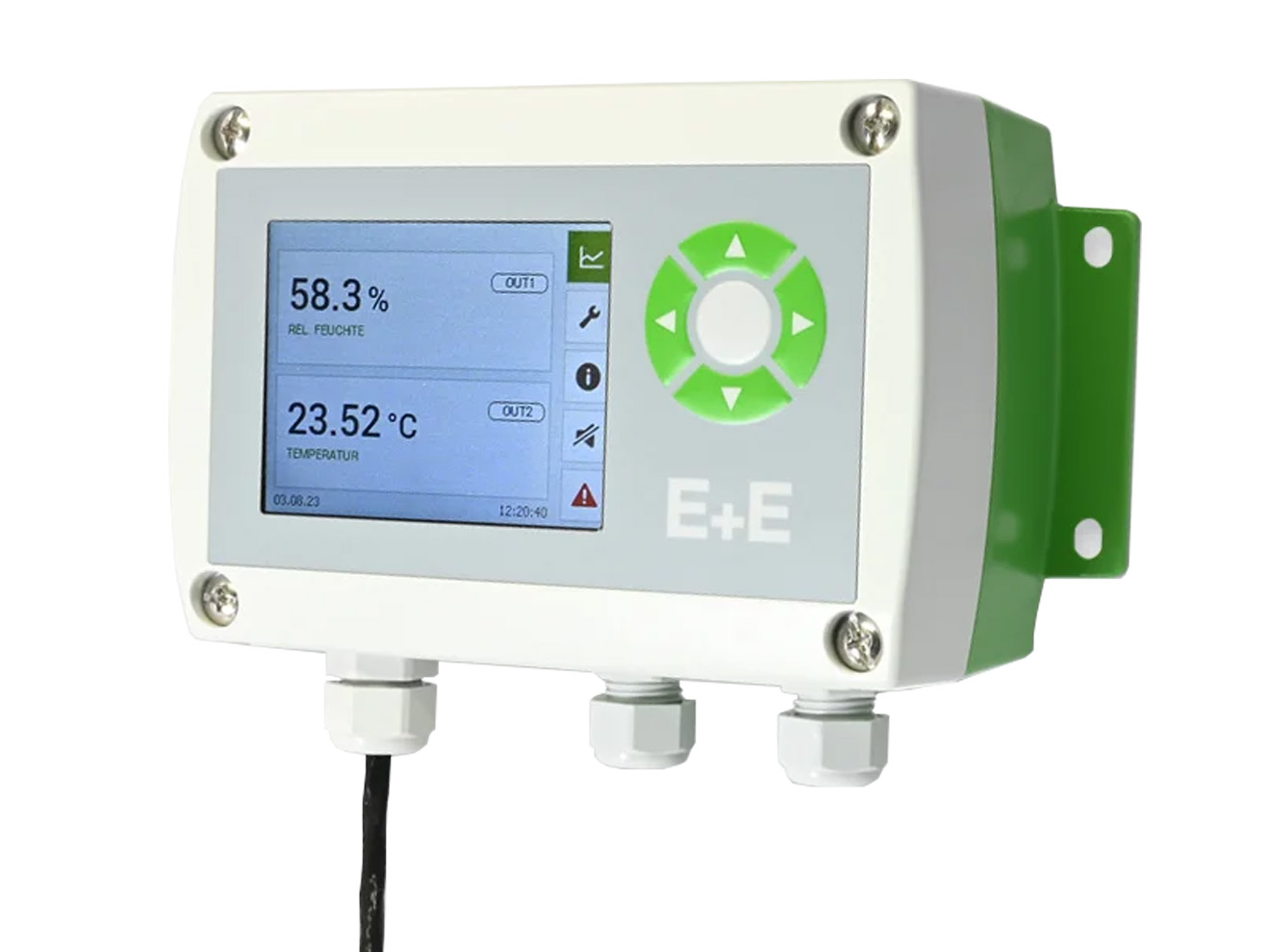

The measured data is available on two freely scalable analogue outputs, on the RS485 (Modbus RTU) or Ethernet-PoE (Modbus TCP, M12 X-coded connection) interface and on the alarm (relay) outputs. The configuration and the RH and T adjustment of the HTS801 can be performed with the free PCS10 product configuration software. An optional 3.5-inch color display with push buttons is available for configuration and visualization.
