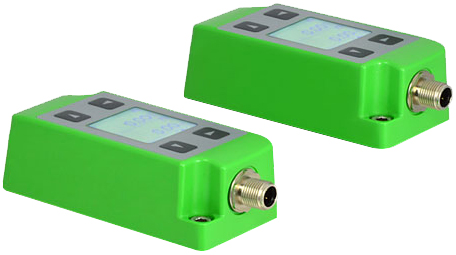

E+E EE741 Inline Flow Meter

The E+E EE741 Inline Flow Meter is dedicated for accurate metering and monitoring of compressed air and technical gases.

The thermal measuring principle and the well-proven E+E hot film sensor element lead to best long-term stability and fast response time. Outstanding measuring accuracy, even in the lower measuring range is achieved by an application-specific multi-point factory adjustment, which is performed at 102 psi (7 bar). This allows reliable leak detection and corresponding energy savings. The construction of the EE741 is optimized for easy installation and maintenance.

Applications for the EE741 include:

Compressed air consumption measurement
Flow measurement of technical gases (O2, N2, Ar, CO2)
Nitrogen generators
Leak detection

Features

• Modular design
• Hot film sensor element
• Selectable pipe sizes / ranges:
  • 1/2 to 1in (DN15 to DN25) up to 124.71 SCFM
  • 1-1/4 to 2in (DN32 to DN50) up to 493.35 SCFM
• Application-specific adjustment under pressure
• Output options
  • 0/4 to 20mA, Pulse, & Switch
  • Modbus RTU
  • M-Bus
• 18 to 30 VDC supply
• Mounting blocks ordered separately
