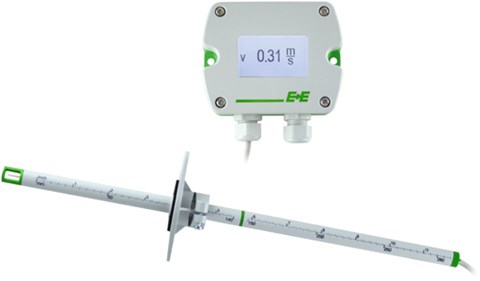

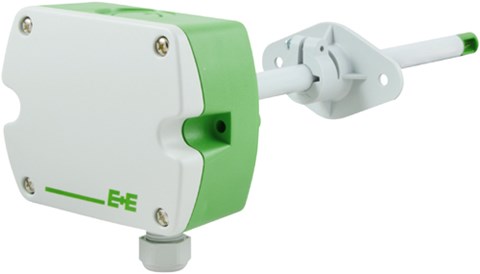

The E+E EE660 Air Velocity Transmitter is designed for highly accurate measurements of very low air velocity. It is the ideal solution for laminar flow control and special ventilation applications for instance in clean rooms. The E+E thin film sensor used in EE660 operates on the hot film anemometer principle, which stands for excellent accuracy down to 0.15 m/s (30 ft/min) and high insensitivity to pollution.
The measured data is available on the current and voltage outputs (both signals are available on the terminal) as well as on the optional LCD backlight display. The measurement range and the response time can be selected via a jumper. Low angular dependence and the mounting flange enable easy, cost-effective installation. An optional kit facilitates easy adjustment of EE660 and configuration of the display.
