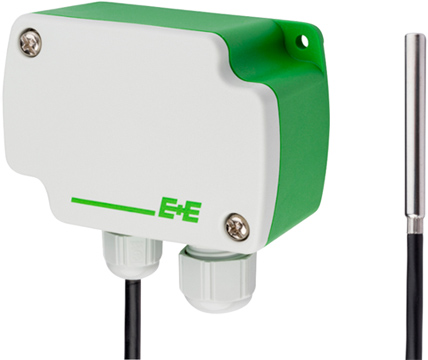

E+E EE471 Temperature Sensor

The E+E EE471 Temperature Sensors are used for temperature measurements in applications with space restrictions or where the electronics must be protected against high temperature or strong vibrations.In addition to active outputs 0 to 10 V or 4-20 mA various types of sensing elements such as Pt1000, NTC10k or Ni1000 are available for passive temperature measurement. Due to an innovative cable outlet and housing concept a high protection class is provided. Product-specific information for the remote probe is printed all along the cable. The optional adapter EE-PCA and the free configuration software EE-PCS facilitate the adjustment and setup of the active temperature sensors.

Features

• Temperature sensor with remote probe
• Measuring range:
  • Passive output: -22 to 221°F (-30 to 105°C)
  • Remote probe: -22 to 221°F (-30 to 105°C)
  • Enclosure: -22 to 158°F (-30 to 70°C)
• Two-wire connection
• Accuracy: ±0.54°F (±0.3°C)
• IP65 / NEMA 4 (enclosure and probe) protection class
• 0 to 10V or 4-20 mA output
• External mounting holes
• Bayonet screws
