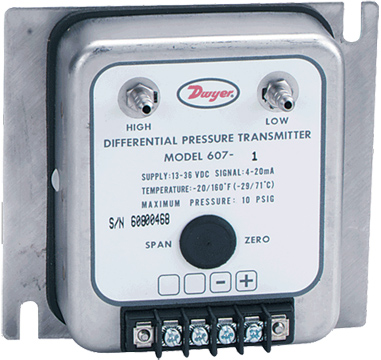

Dwyer 607 Differential Pressure Transmitters

The Dwyer 607 Differential Pressure Transmitters combine very low ranges with exceptional stability, reliability and either ±0.25% or ±0.5% accuracy for the most demanding applications. Ranges from 0-0.1″ to 0-25″ w.c. Ultra thin glass clad silicon diaphragm design resists shock and vibration, practically eliminates drift. Certification to NIST standards is included with each unit. Tough stainless steel housing is NEMA 2 rated to protect against moisture and dirt. Use with air and other compatible gases.

Applications for the 607 include:

Leak Detection
Clean Room Control
Lab and Fume Hood Pressure Control

Features

• Air and non-conductive, non-corrosive gases
• ±0.5% or ±0.25% FS accuracy
• Ranges from 0 to 0.1in w.c.
• 10 psig (0.69 bar) pressure limits
• ±0.5% FS/yr stability
• Stainless steel housing
• Resists shock and vibration
