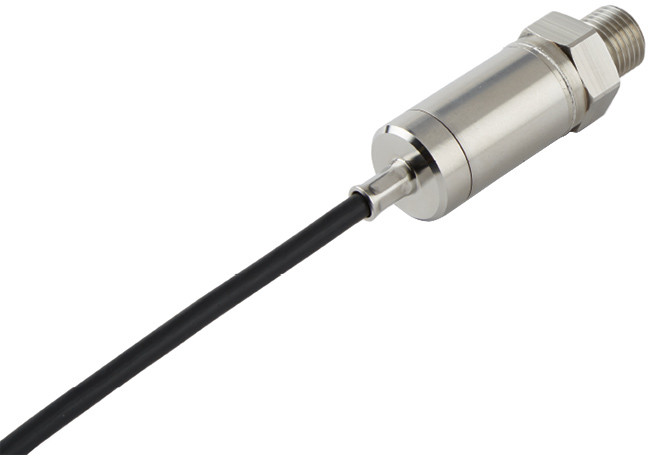

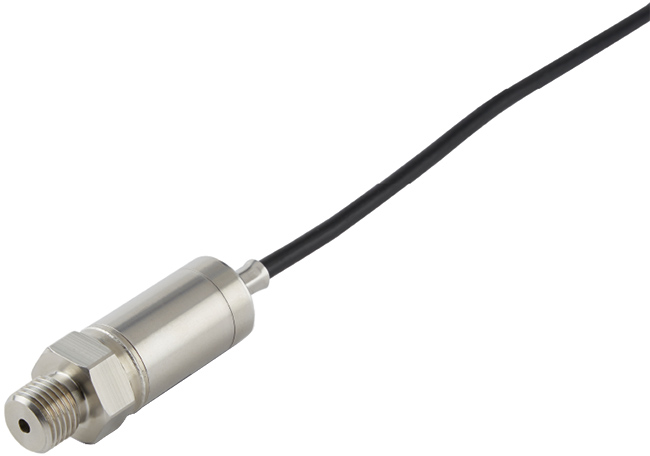

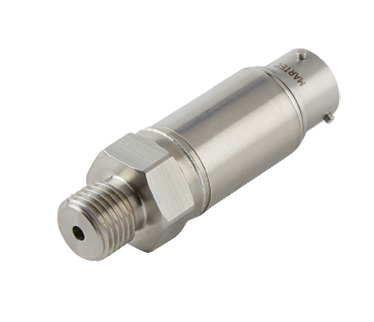

Druck ADROIT6000 Pressure Sensor

The Druck ADROIT6000 Pressure Sensor is a high performance, robust pressure measurement device. It combines the best mechanical properties of micromachined silicon in a fully welded 316L stainless steel body with the latest digital processing capability to offer levels of accuracy, previously unavailable in a device of this type. It offers a full suite of pressure measurement including gauge, absolute and differential references and pressure ranges from 70 mbar to 690 bar.

Features

• Temperature range:
  • Operating: -40 to 257°F
  • Survival: -67 to 302°F
• 25 or 19mm diameter options
• Performance to 0.02%
• 1 to 10,000 psi (70mbar to 690bar) pressure ranges
• Gauge, sealed gauge, absolute, barometric, and differential reference
• 4 to 20mA, 20 to 4mA and configurable voltage output
• Total Accuracy up to 0.1% span
• Frequency response to 1 kHz
• 316L Stainless Steel construction
