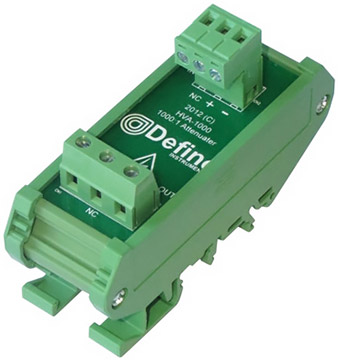

Define Instruments HVA-1000 High Voltage Attenuator

The Define Instruments HVA-1000 high voltage attenuator reduces a high voltage input to a low voltage output which can then be fed safely into most industrial instruments for measurment. It uses a unique differential divider to provide resistive protection to both the positive and negative sides of the output.

All Zen units with universal input are capable of accepting an attenuator input.

Features

• 1000VDC maximum input voltage
  • 3.8MΩ input impedance
• 1000 (±0.1%) attenuation factor
  • 3.8KΩ output impedance
• 50ppm/°C maximum ambient temperature drift
• 35mm DIN rail mount
• CE approved & 5-year guarantee
