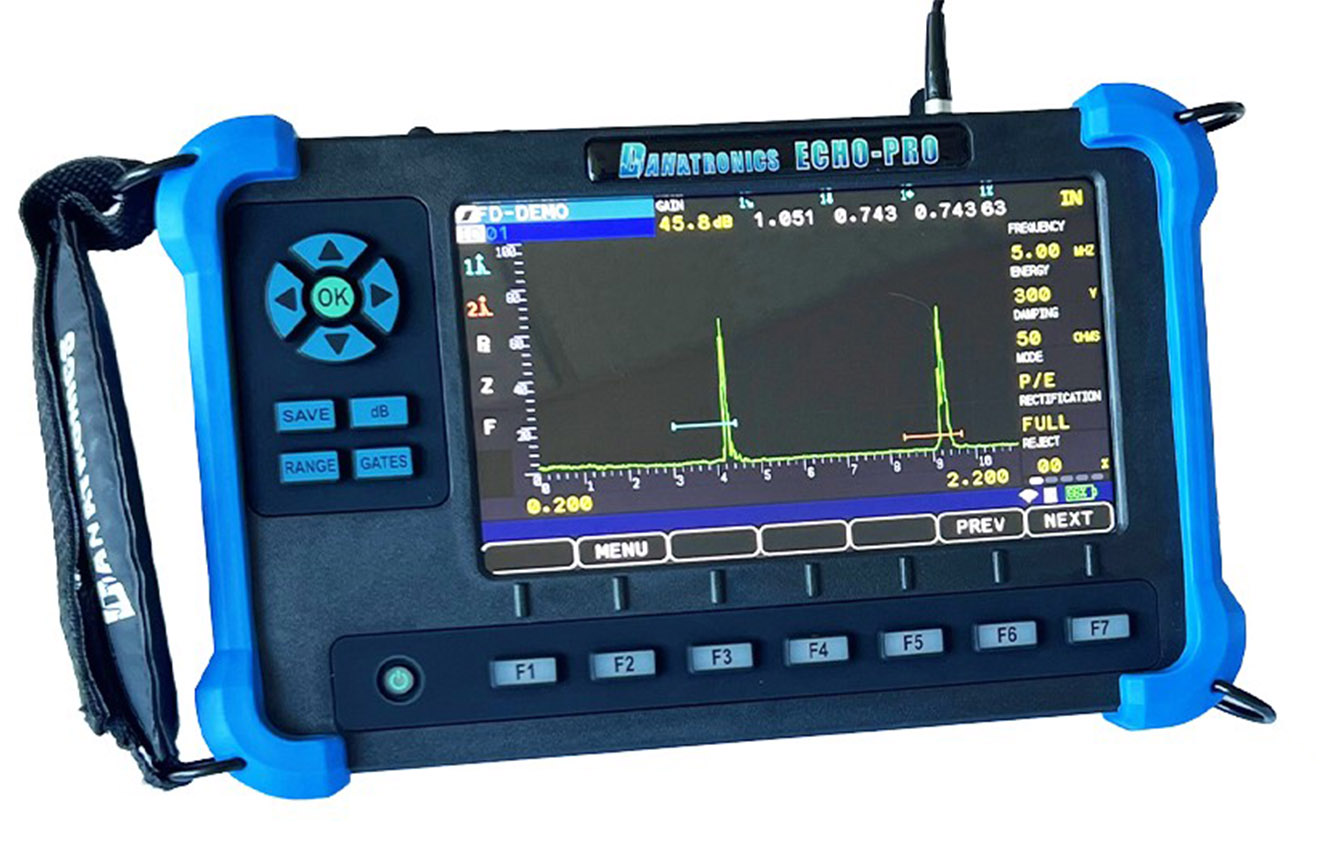

Danatronics ECHO PRO Ultrasonic Flaw Detector

The Danatronics ECHO PRO ultrasonic flaw detector has a datalogger with export of thickness readings to Excel, 2 gates, AWS, API 5UE, DAC, single hand and touch screen operation and a 600 Volt pulser and continuous 8 to 10 hour battery operation. Advanced features include damping, digital filters, analog and alarm outputs, Wi-Fi and Bluetooth. Optional Features include interface gate, floating and tracking gates, extended range, and back echo attenuator.

Features

• 10 Hz -2k Hz adjustable measurement rate
• 0.353in to 277in at 5,900m/s (0.2320in./μ) measurement range
• Measurement types:
  • Single, dual, thru transmission, angle beam, delay lines, contact, immersion, echo to echo, dry couple
• 7.2V, 13.6AH rechargeable lithium-ion battery
  • 8 to 10 hour battery life
• 100-240 VAC, 50-60 Hz 1.4A max Input power requirements
• 7in wide VGA touch screen display
• USB, Wi-Fi, Bluetooth included with optional RS-232
• Color changing and vibrate on alarm
• CE certified, RHOS compliant, designed for IP67, ASTM E317-15 calibration certificate included with gage
