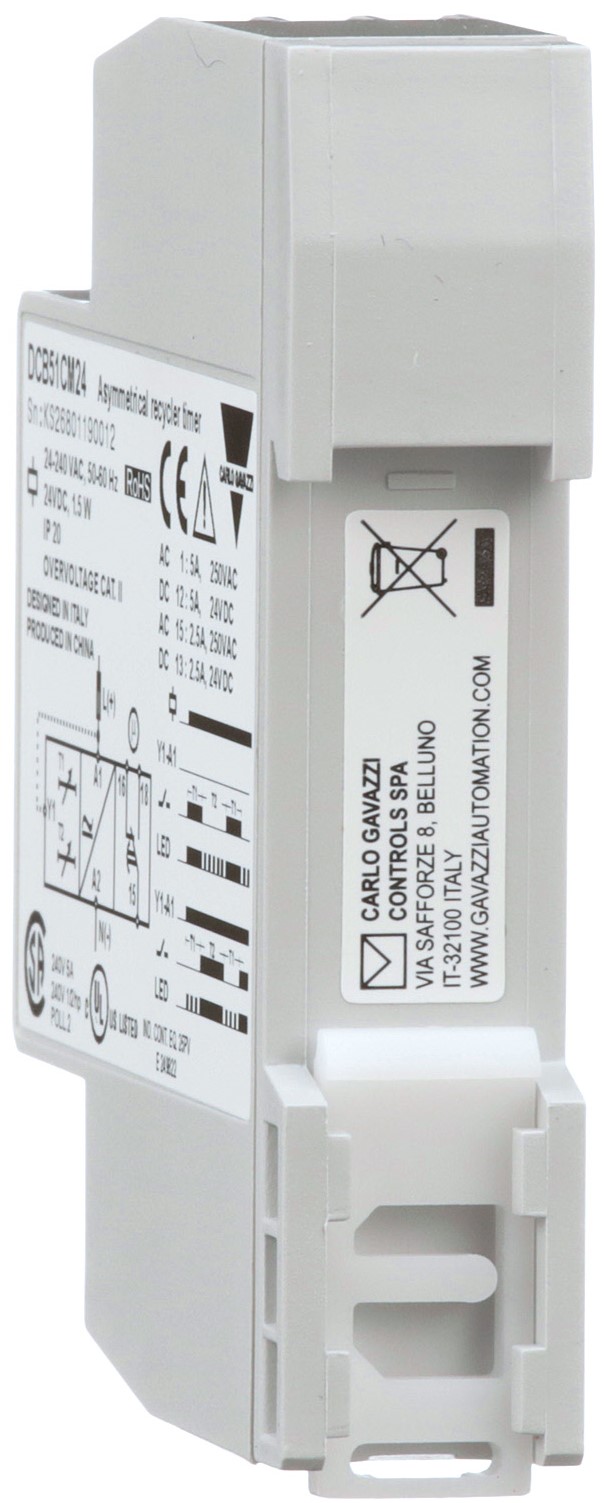

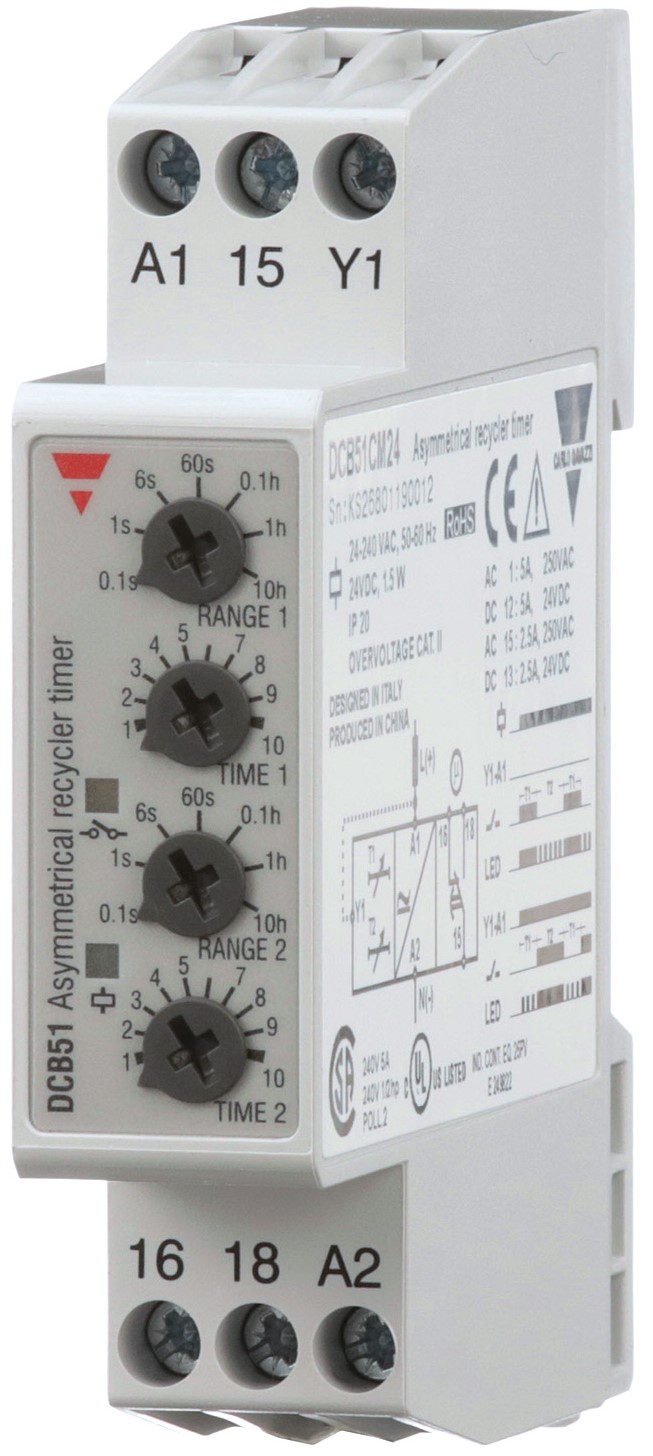

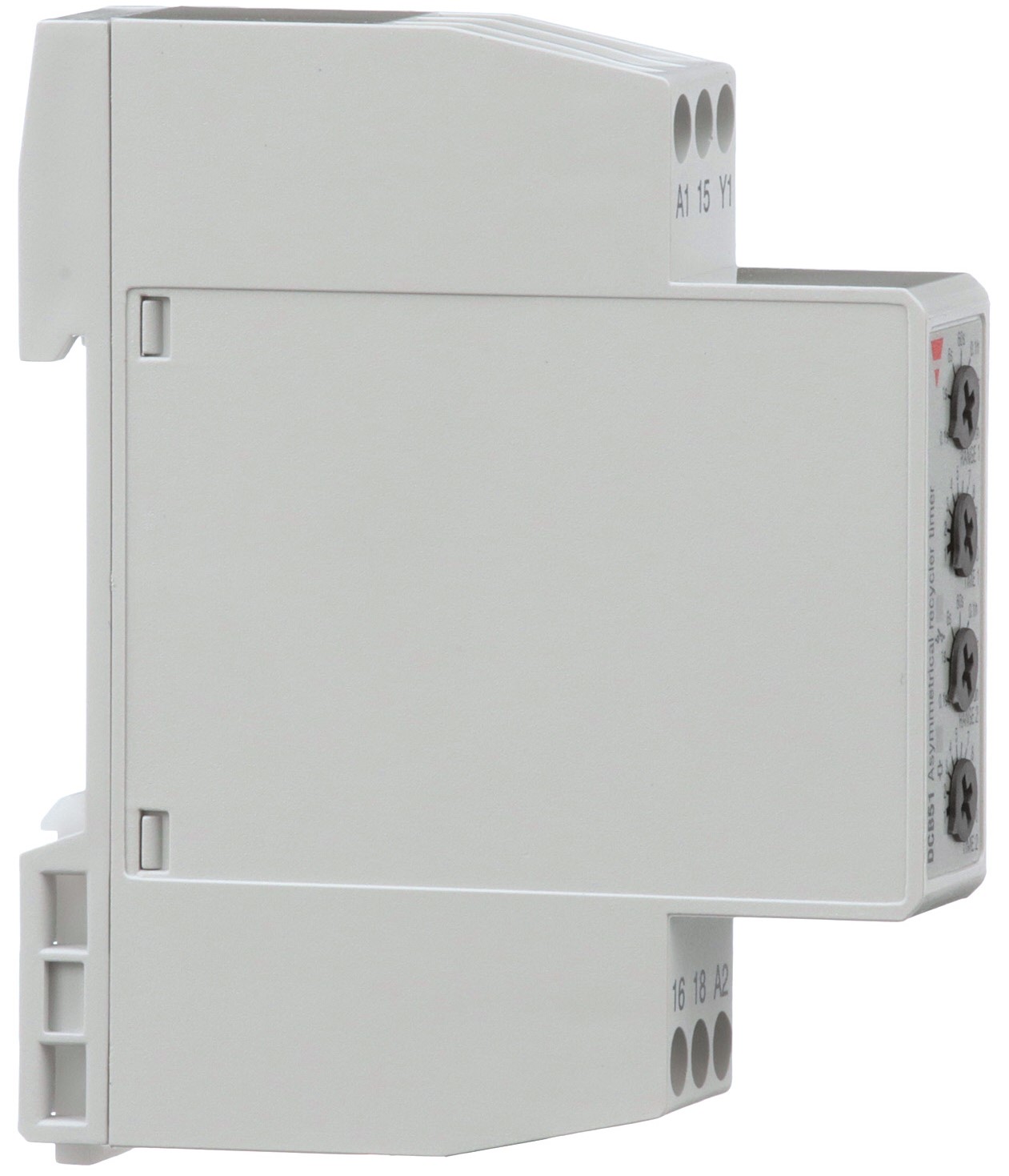

Carlo Gavazzi Type DCB51 Asymmetrical Recycler Timer

The Carlo Gavazzi Type DCB51 Asymmetrical Recycler Timer provides two selectable functions: asymmetrical recycler ON first, and asymmetrical recycler OFF first. Time range and settings between the ON and OFF times are knob adjustable, and the alternating sequence continues until the power supply is interrupted for at least 200ms.

Adjustable time ranges are:

0.1s to 1s
1s to 10s
6s to 60s
60s to 600s
0.1h to 1h
1h to 10h
10h to 100h

Features

• 0.1s to 100h time range
• 1 x SPDT relay output
• Selection of time range by front knobs
• Automatic start
• 17.5mm DIN-rail housing
• Combined AC and DC power supply voltage
• LED indication for relay status and power supply ON
