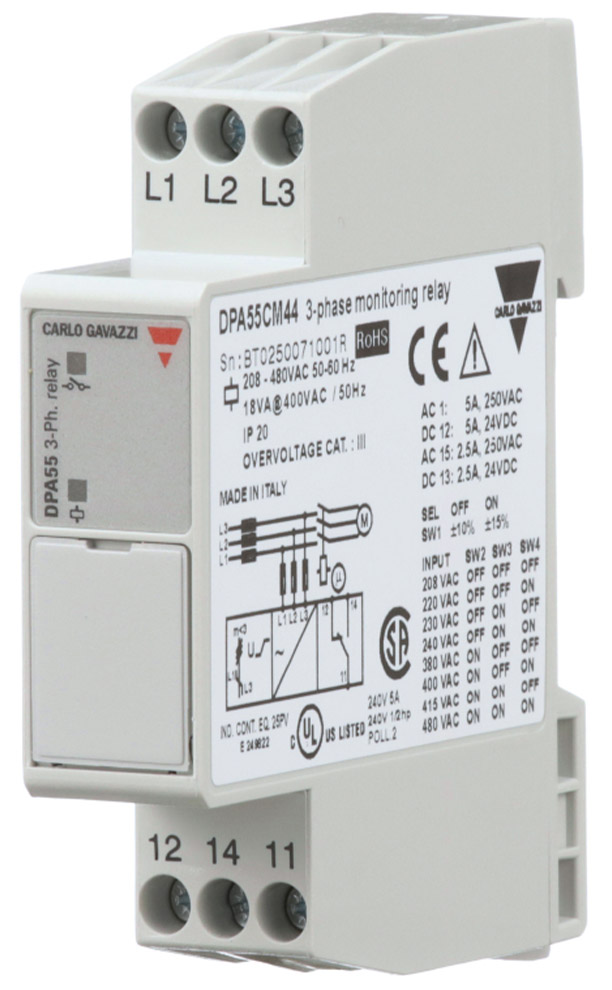

Carlo Gavazzi DPA55 Monitoring Relay

The Carlo Gavazzi DPA55 monitoring relay is a three-phase monitoring relay used for detection of incorrect phase sequence, and total or partial phase loss while also detecting if the voltage is at a desired level (±10% or ±15%) as set by the user. The monitoring range of 380 to 480 VAC is covered by two multi-voltage relays. The relay operates when all the phases are present, the phase sequence is correct and each phase-phase voltage is within the desired tolerance. The relay releases when one phase-phase voltage drops below the setpoint or when the phase sequence is incorrect. The DPA55 is DIN-rail mountable, and the 17.5mm housing is suitable for either back or front panel mounting.

Carlo Gavazzi DPA55 Monitoring Relay Applications
Elevators and escalators
HVAC and refrigeration
Water and wastewater
Plastics and rubber
Food and beverage
Packaging and wrapping
Material handling and conveyors

Features

• Detects when all three phases are present and in proper sequence
• Detects if voltage is at the desired level (± 10% or ±15%)
• Measures its own power supply
• 208 to 240VAC power supply range
• 5A SPDT relay output normally energized
• 17.5mm DIN-rail housing (DIN 43880)
• LED indication for power supply, output relay and ON
