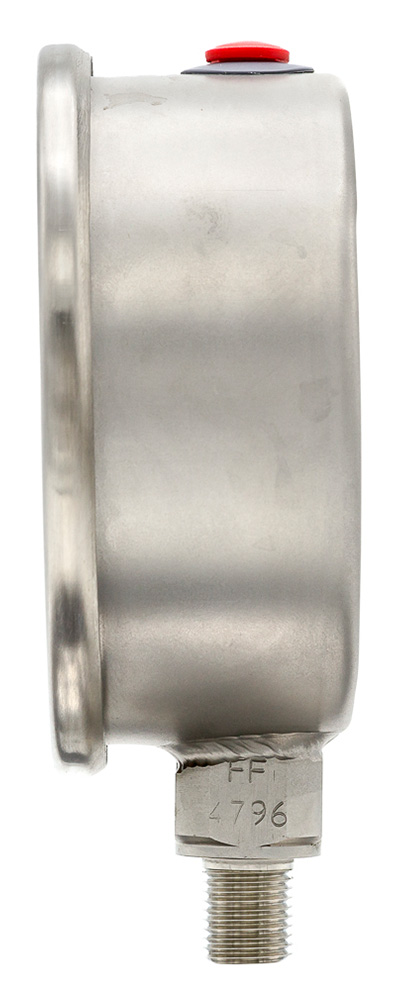

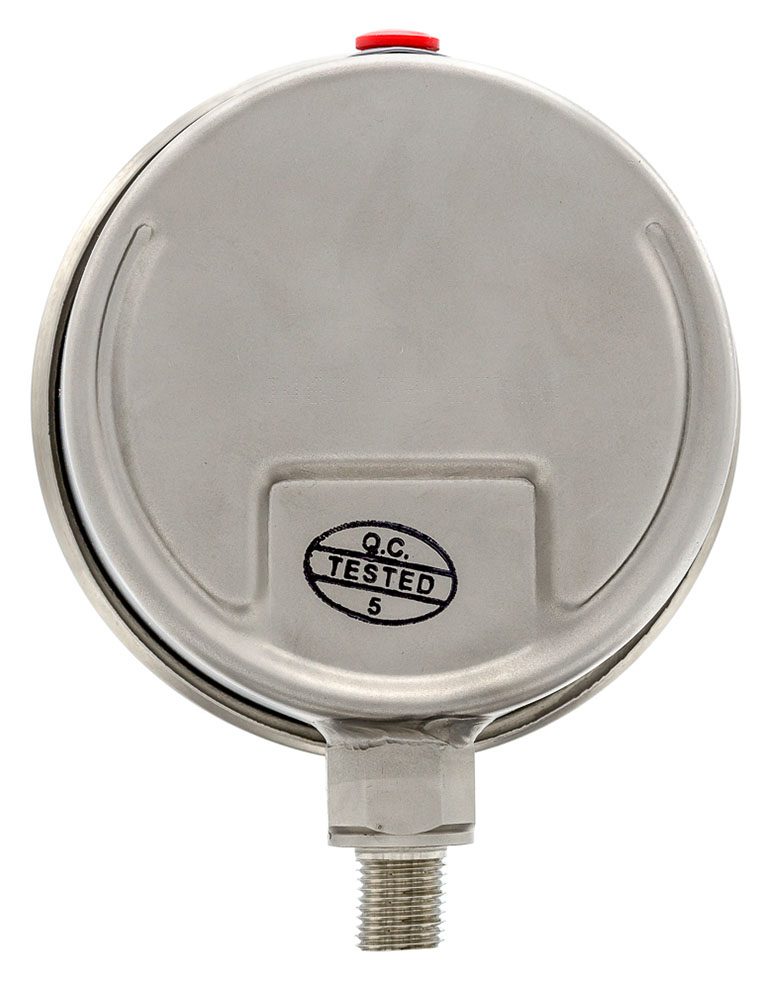

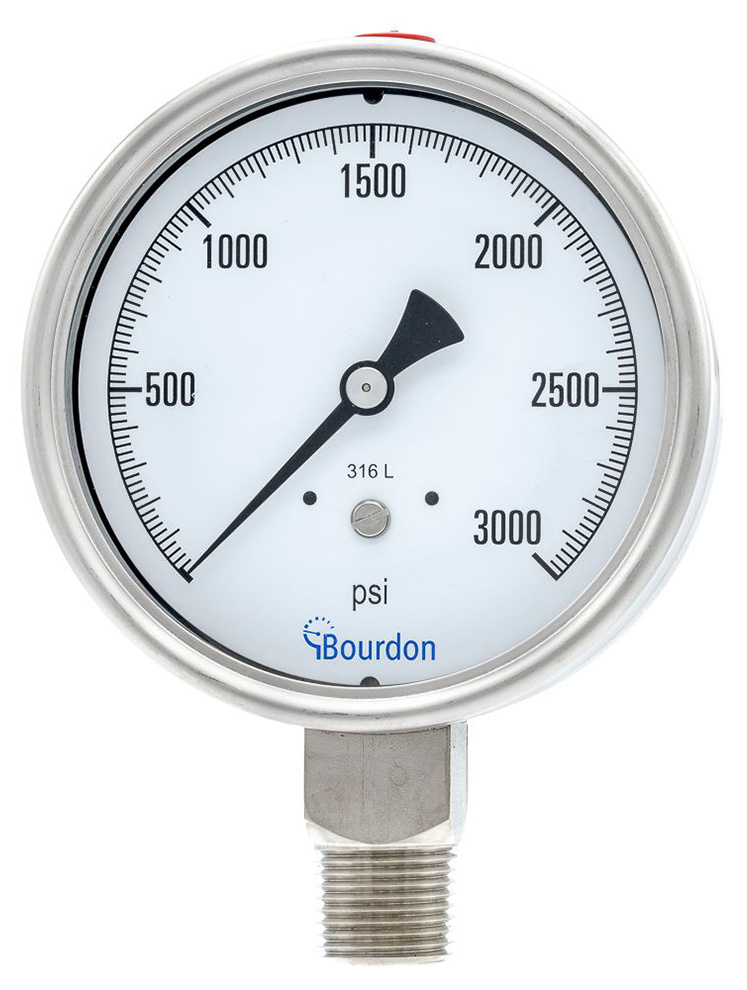

The Bourdon MEX5 Pressure Gauge is an analog, bourdon tube gauge designed for use with corrosive gases and liquids. Pressure ranges are available from vacuum to 20,000psi, including compound and metric ranges. With a nominal size of 3.94in (100mm), the gauge features a stainless steel case, stainless steel or Monel bourdon tube and process connection, and a stainless steel bezel ring.
The Bourdon MEX5 pressure gauge is available in a dry or liquid-filled version, with liquid fill options of low viscosity glycerin/water, high viscosity glycerin, or silicone oil. Standard accuracy is ± 1% (Class 1 according to EN 837-1). Multiple process connection options are available, including M20 x 1.5, up to 3/8in NPT, and up to G 3/8in.
Applications
Laboratory and medical
Oil and gas
Food and beverage
Energy
Transportation and logistics
Water and waste water
Machinery
