Bourdon MAG Series Pressure Gauge

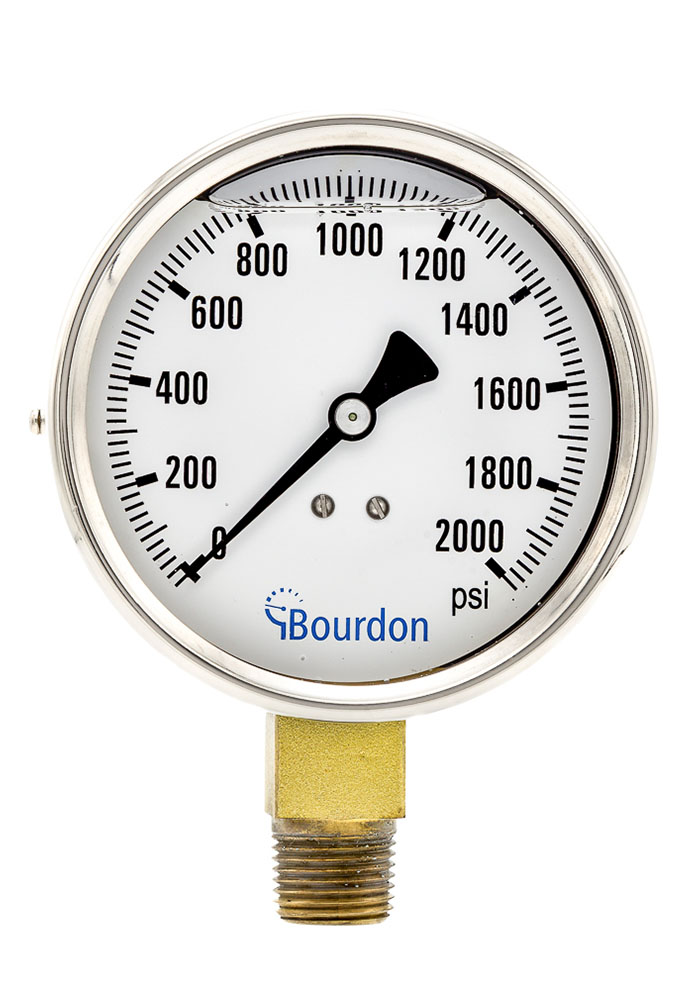

The Bourdon MAG Series pressure gauge is an analog, liquid-filled gauge measuring pressures up to 15,000psi. The liquid fill and restrictor come standard for vibration and pressure pulsation, with liquid fill options of low viscosity glycerin/water, high viscosity glycerin, or silicone oil.

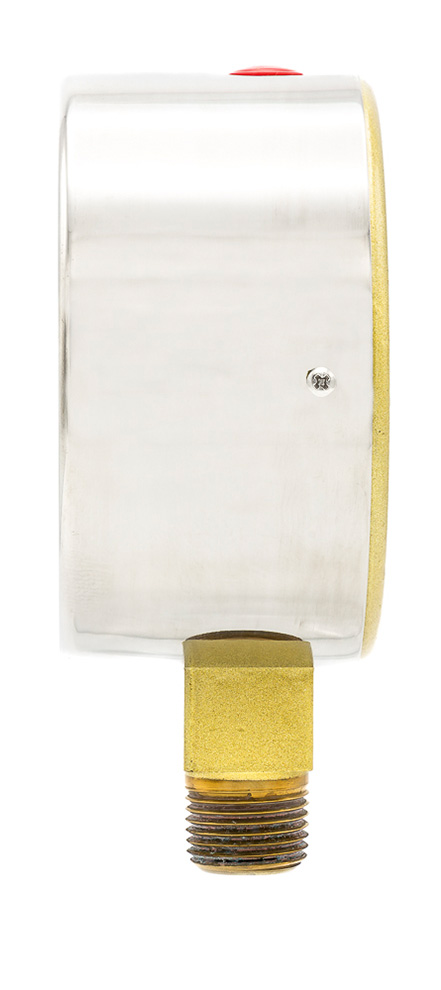

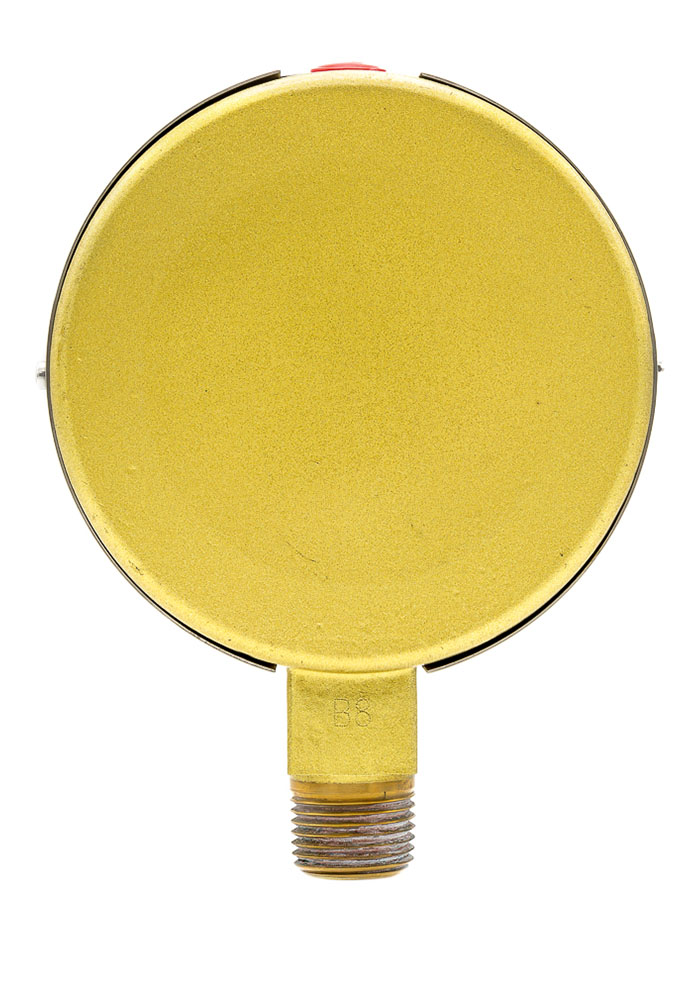

The MAG Series features a one piece, forged brass case and socket, and has copper alloy process connection, bourdon tube, and restrictor. The 2.5in (63mm) gauge size has a gold plated ABS cover ring and a standard accuracy of ± 2/1/2% of span, while the 4in (100mm) size has a polished stainless steel cover ring and a standard accuracy of ± 1% of span. Available process connections include 1/4 or 1/2in NPT.

Applications
Hydraulic pump systems
Compressors
Oil tank batteries
Oil field pumpjacks
Fire trucks
Mobile hydraulics

Features

• Size:
  • 2.5in (63mm)
  • 4in (100mm)
• Accuracy:
  • 2.5in: ± 2/1/2% of span
  • 4in: ± 1% of span
• Forged one piece case and socket
• Powder coated case
• Gold plated or stainless steel cover ring (depending on size selected)
• Aluminum black pointer
• IP 66 (EN 60529) protection rating
