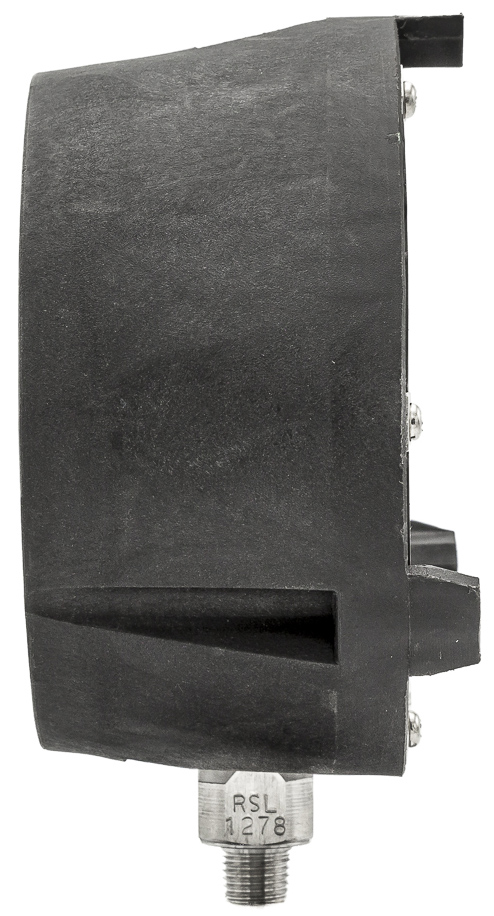

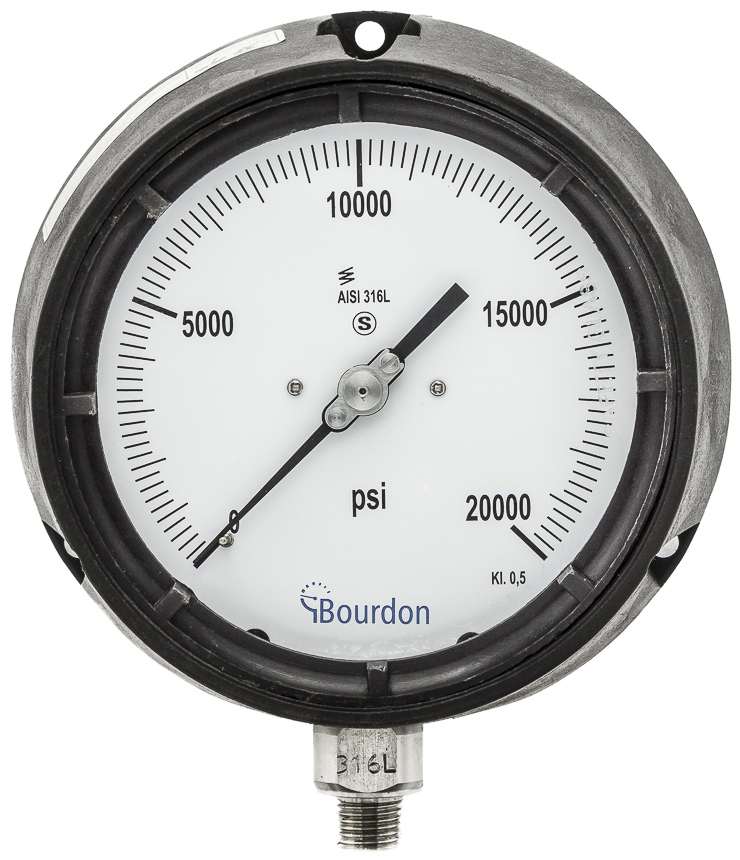

Bourdon AHG6 Series Pressure Gauge

The Bourdon AHG6 series pressure gauge is a Bourdon-type gauge featuring AISI 316L stainless steel wetted parts and a polypropylene case with stainless steel measuring system. The gauge’s solid front design features a baffle wall interposed between the sensing system, the window, and a pressure-relieving back for increased safety.

The AHG6 gauge follows the ASME B40.100 standard. It is suitable for high pressure gas and corrosive or hazardous environments.

Features

• ±0.5% F.S. accuracy
• 4.5in nominal size
• Vac to 20,000psi pressure range
• 75% of scale value operating pressure range
• Over pressure limits:
  • ≤100 bar: 125% of max scale value
  • >100 to ≤600 bar: 115% of max scale value
  • >600 to ≤1600 bar: 110% of max scale value
• Solid front gauge with pressure relief back
• Stainless steel wetted parts
• Dry and liquid-filled versions
• IP 65 protection rating
