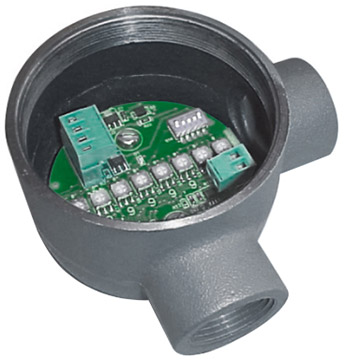

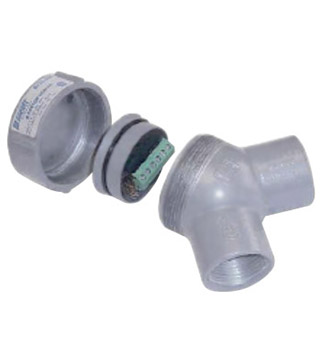

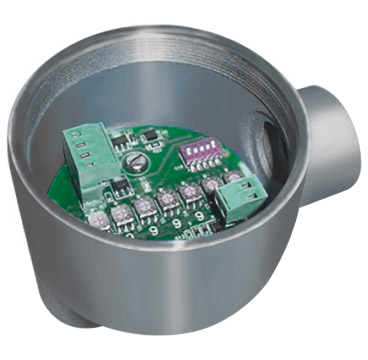

Blancett K-Factor Scaler Frequency Divider

The Blancett K-Factor Scaler is an adjustable frequency divider, it converts or scales the turbine meter output into units of measurement needed for a particular application and recognized by almost any data collection device. The k-factor scaler provides an amplified signal, even when a frequency conversion is not required. The signal is more immune to electrical noise and capable of transmission over longer distances than a raw turbine meter output.

Features

• Amplifies turbine meter pulse output
• Switch-selectable or programmable versions available
• Scales turbine meter output into engineering units
• Converts frequency outputs into units for PLCs
• 0 to 4000Hz frequency range
• Selectable pulse length
  • 150μs, 1ms, 25ms, 100ms, 500ms, 1s, or auto mode
• -22 to 158°F (-30 to 70°C) operating temp
• CSA approved
