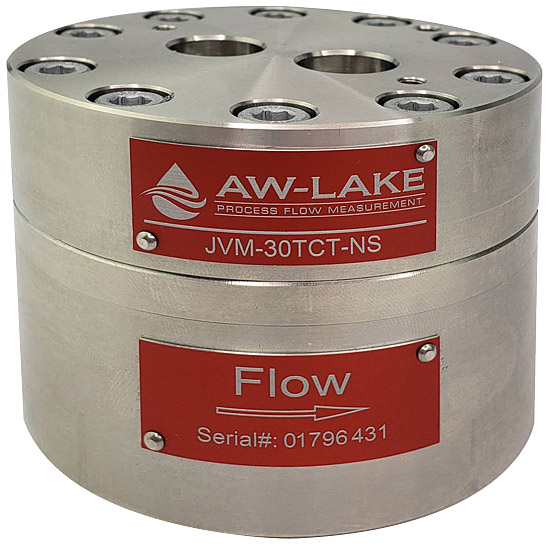

AW-Lake JV-TC Positive Displacement Gear Flow Meter

The AW-Lake JV-TC positive displacement gear flow meter measures non-lubricating and filled fluids with an improved gear/shaft design, increased pressure ratings and improved flushability over its predecessor. These improvements, along with the standard 7-point calibration and new EDGE sensor, offer a 0.5% accurate meter across the full flow range.

AW-Lake JV-TC Positive Displacement Gear Flow Meter Applications
Filling and dosing systems
Paint shops and delivery systems
Polyurethane systems
Multiple-component mixing systems
Adhesive dispensing systems
Hydraulic systems

Features

• Flow ranges 0.001 to 20 GPM across all meter sizes
• Accuracy ±0.5% over full range with 30cP fluid
• Repeatability ±0.1%
• Maximum operating pressure 6,000 PSI
• Up to 400:1 turndown
• 7-point logarithmic calibration
• 303 or 316L stainless steel body
