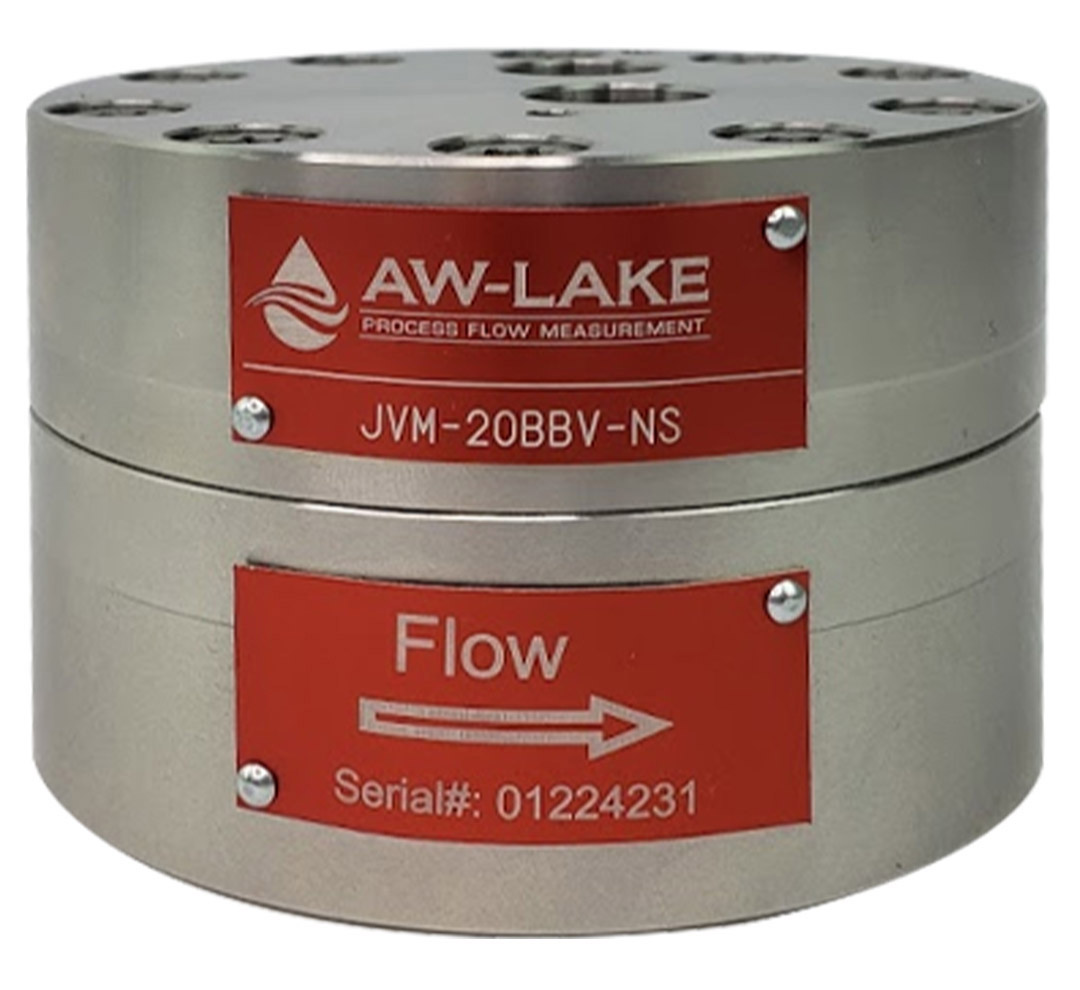

AW-Lake JV-BB Series Flow Meter

The AW-Lake JV-BB Series flow meter is provided with 0.5% accuracy over the full range of the meter, higher resolution, and higher pressure ratings with the release of our JV-BB series. These PD meters were designed for measuring lubricating and nonabrasive fluids with low or medium viscosity. Applications include:

Chemical injection & dosing systems
Fuel measurement
Test stands
Hydraulic positioning systems

Features

• Flow ranges 0.005 to 120.0 GPM
• Accuracy ±0.5% of reading
• Pressure rating up to 6000 PSI
• Economical cost
• Six flow ranges available
• Aluminum, 303, and 316 SS bodies
• Up to 150:1 turn down
• 7-point logarithmic calibration
