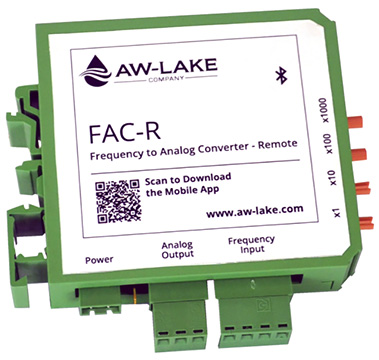

AW-Lake FAC-R1 Frequency to Analog Converter

The AW-Lake FAC-R1 frequency to analog converter sends analog signals from frequency output sensors to a PLC or control system. It offers excellent linearity, high temperature stability, and long-term stability.

The AWL Mobile Toolkit app allows you to view real time flow rates, input frequencies, analog outputs, and set up units, time base, K factor, and max flow rates. You will also be able to force one or both outputs to a certain value and select different output ranges.

Features

• 0.25 to 5,000Hz input frequency
• 4-20mA & 0-10V default analog output
  • 0-5V, 1-5 & 2-10V options
• 16 bit analog output resolution
• 10-28VDC supply voltage rate
• USB-SERIAL-4PIN cable required to connect to a PC for access to Toolkit for Advanced features, programming and setup
