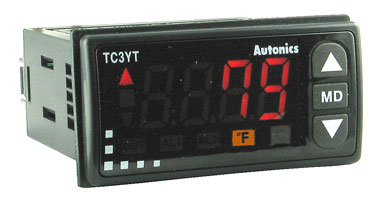

The cost-effective and simple-to-use Autonics TC3YT temperature controller accepts type J or K thermocouples or Pt100Ω RTDs. The Autonics TC3YT temperature controller is available with a relay capacity of either 3 or 16 amps.
Setting the Autonics TC3YT temperature controller is simple via a 3-button keypad on the front of the unit. The bright 3-digit LED display is large and easy to view. The low cost of the Autonics TC3YT temperature controller belies the fact that it is tough and durable controller. In addition to being rated for a life span of at least 10 million switching cycles, the Autonics TC3YT temperature controller is also IP65 rated for dust and water protection.
The Autonics TC3YT temperature controller can handle ambient temperatures ranging from -10 to 50°C. With a response time of just 500ms and an accuracy of ±0.5%, this is a controller that performs well for almost any application. At just 72mm (W) x 36mm (H) x 77mm (L), the Autonics TC3YT temperature controller is small enough to fit almost anywhere.
Input Specification & Control Range
Input
