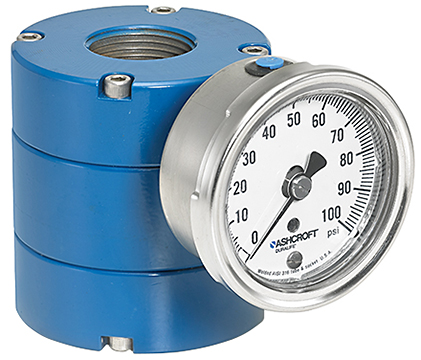

Ashcroft 82 Threaded Isolation Ring

The Ashcroft 82 threaded isolation ring is designed to protect measuring devices such as pressure gauges, switches and transducers from direct contact with process media. The isolation ring is threaded in-line with process piping, and uses a 360-degree flexible liner that eliminates the potential for clogging or fouling while transmitting pressure hydraulically to the instrument. The “ring” design eliminates process accumulation, assuring accurate pressure readings.

Ashcroft 82 Threaded Isolation Ring Applications
Water and wastewater
Mining
Pulp and paper
Chemicals

Features

• 360-degree sensing flexible inner liner
• 1/2 through 2 NPT process connection size
• Needle valve dampens pulsation effects
• 1/4 or 1/2 NPT instrument connection
• 150 psi pressure rating
• Non-clogging and low maintenance
